Oval Recessed
Ceiling Domes
Add
depth and character with our oval recessed ceiling domes
and racetrack ceiling domes.
In addition to our
standard oval domes, we can create custom domes, light
coves, casings / trims, coffers, etc., of nearly any size
and style.
Our domes are made of
Glass Fiber Reinforced Gypsum
(GFRG or GRG): 100%
NONCOMBUSTIBLE (unlike polyurethane and wood), lightweight,
extremely durable, crack/shrink/insect resistant,
and environmentally safe and friendly.
All our GFRG products are
made (not
just "assembled") in the U.S.A. by skilled American craftsmen.
Builder/designer and volume discounts available.
For a
quote, email
info@rwm-inc.com or
call 801-268-2400.
Click
here for our Round Recessed Domes page.
Click
here for our Surface Mount Domes page.
Features & Advantages
* Easy
framing & installation.
* Optional
matching light cove (i.e. light shelf) is ideal for rope
lighting — see pictures and diagrams below
(actual lighting not included) — and is installed
after drywall.
* Custom
or standard trims/casings (see
standard samples), center medallions,
and other decor available.
* Comes in paint grade
finish (i.e. ready to lightly sand, and apply primer and finish coats);
providing near-limitless faux, metallic, plaster, and other
finish possibilities.
* Adaptable
for grid ceilings or tile ceilings. See
3-page grid/tile ceiling diagrams for domes and domes
with light coves or casings.
* Optional center hole
(free).
*
Made of
Glass Fiber Reinforced Gypsum that is
100% NONCOMBUSTIBLE,
crack, shrink, and insect resistant, and extremely durable.
*
All our GFRG products are made (not just
"assembled") in the U.S.A. by
skilled American craftsmen.
|
See
our standard oval dome sizes. Custom sizes & styles
available.

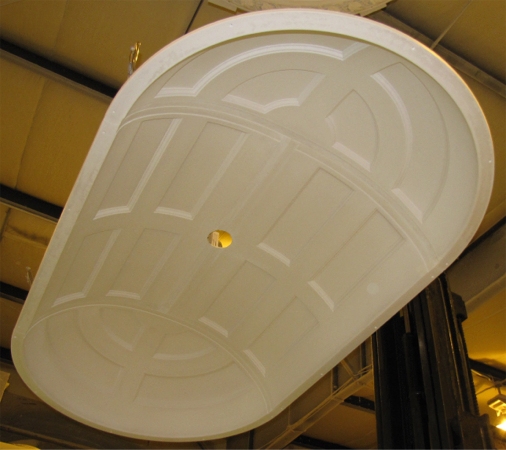

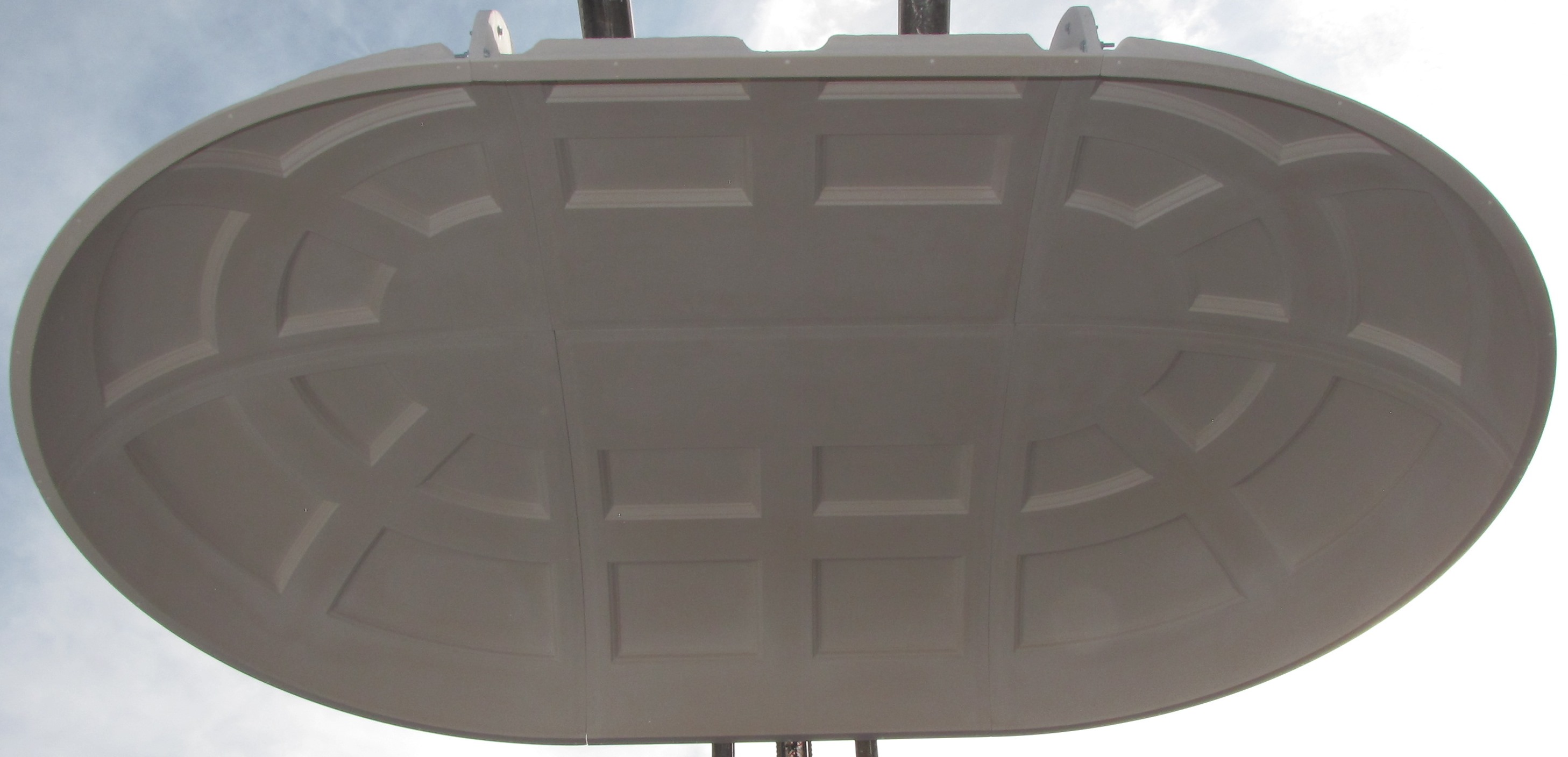

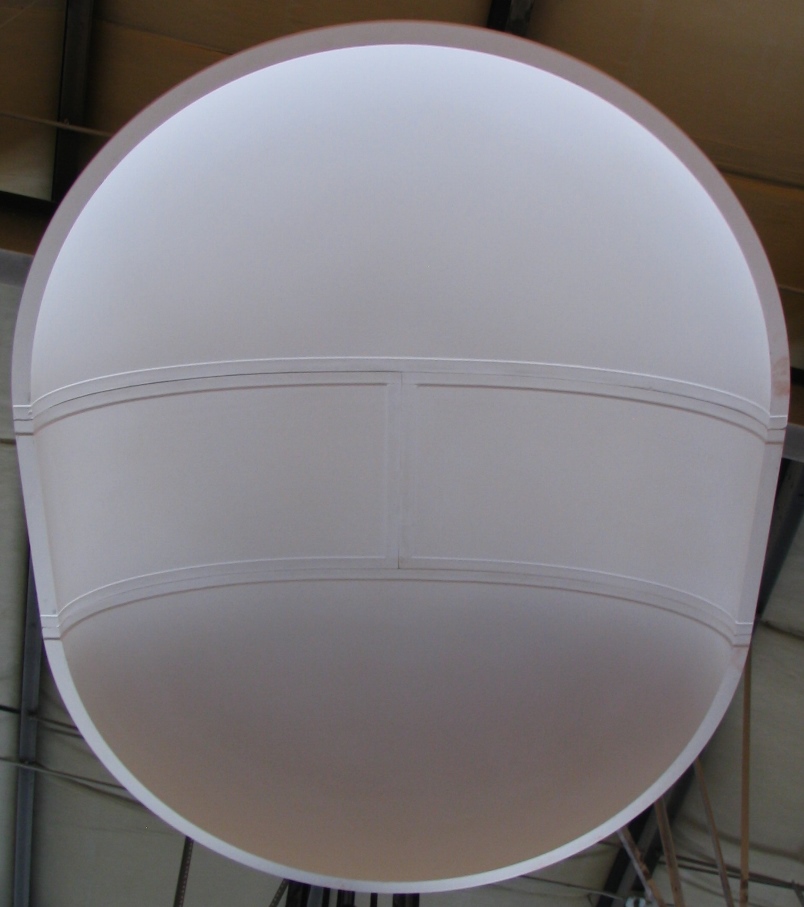

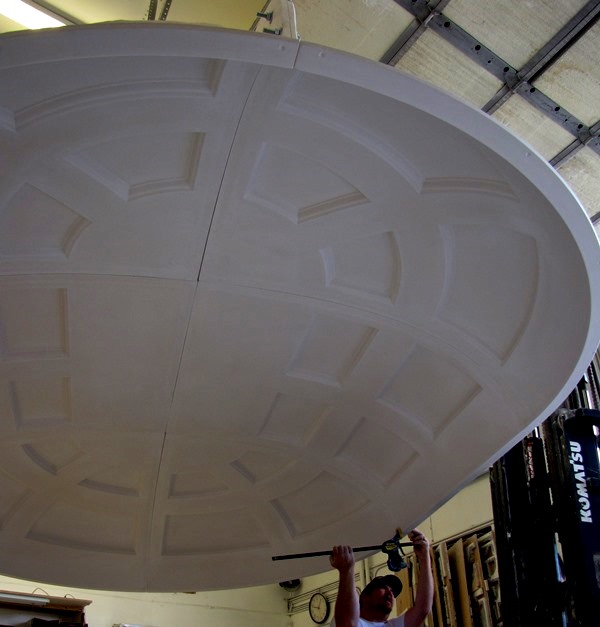

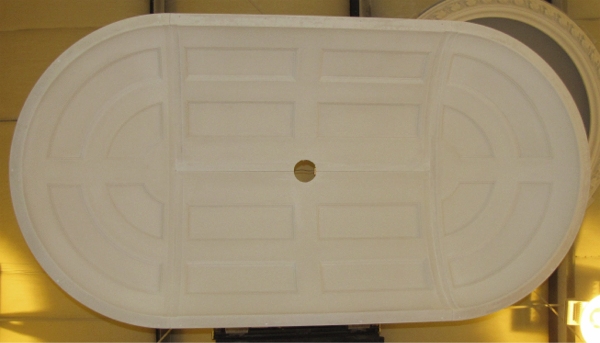

Elliptical or Racetrack shapes
and cast-in Coffered Panels are all possible.
We
can prepare domes for grid or tile ceilings. |
21"
L x 15" W Oval Dome
* Inner Dimensions: 21-1/2"
length x 15-1/2" width x 7-1/4" rise.
See diagrams.
* Comes with
attached casing, bringing overall
dimensions to 26-1/2" length x 20-1/2" width x
8" rise (from face of casing to very back of
product).
* Also available
in GFRG Limestone
Cast
(includes actual limestone, porosity, 5 limestone finish selections, durable matte
finish sealer, and 8 simulated grout
joints in light cove).
See
sample pictures.
Dome:
$384.97
Standard Add-On Option
GFRG Limestone Cast for Dome & Light Cove
(see
samples) |
$115.00 |
These prices
include shipping.
Volume discounts only.
|

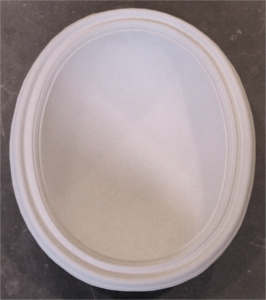

21"x15" Oval
Dome with its attached Casing.

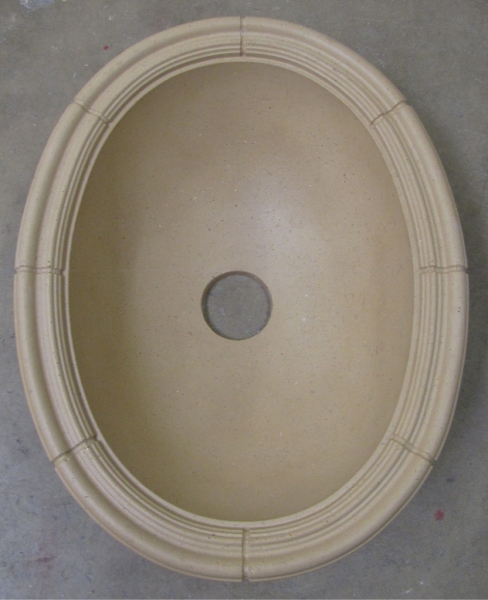

Dome in
our GFRG Limestone Cast (Antique color with
grout joints — available in other colors). |
36" L x 22" W Oval Dome
* Dimensions:
36" length x 22" width, with a 9-5/8"
overall rise (i.e. depth).
See diagrams.
* Optional
Light Coves (i.e. light shelves) add approximately 6" to length
&
width, and are installed after drywall.
See light cove installation suggestions.
* Optional Casings/Trims also available.
* Also available
in GFRG Limestone
Cast
(includes actual limestone, porosity, 5 limestone finish selections, durable matte
finish sealer, and 4 simulated grout
joints in light cove).
See
sample pictures and the photo to the right.
36"x22" Dome:
$534.97
Standard Add-On Options
For a
shipping
quote, email
info@rwm-inc.com or call
801-268-2400 |

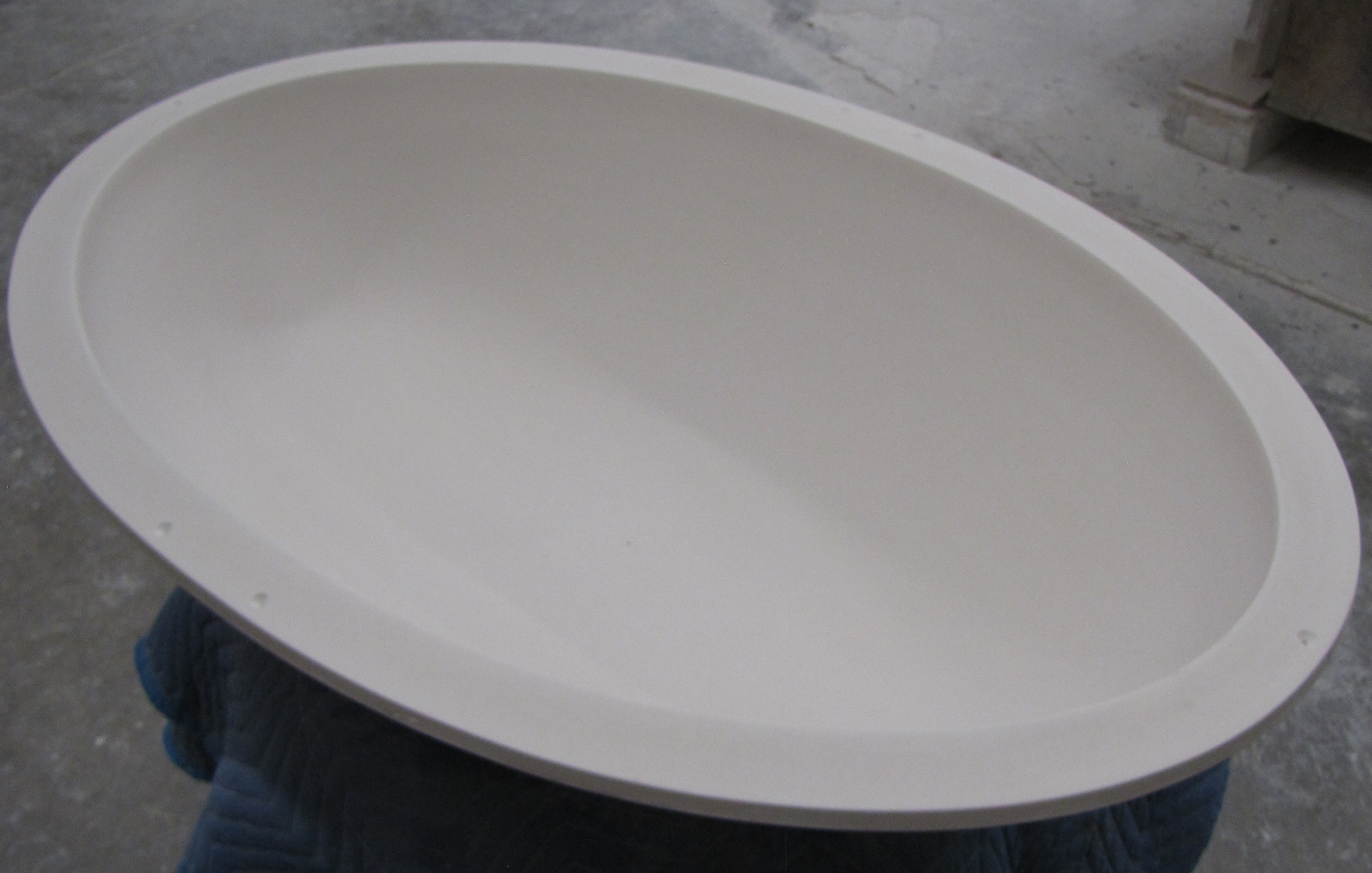

36"x22" Oval Dome by itself —
without an optional
light cove or casing.

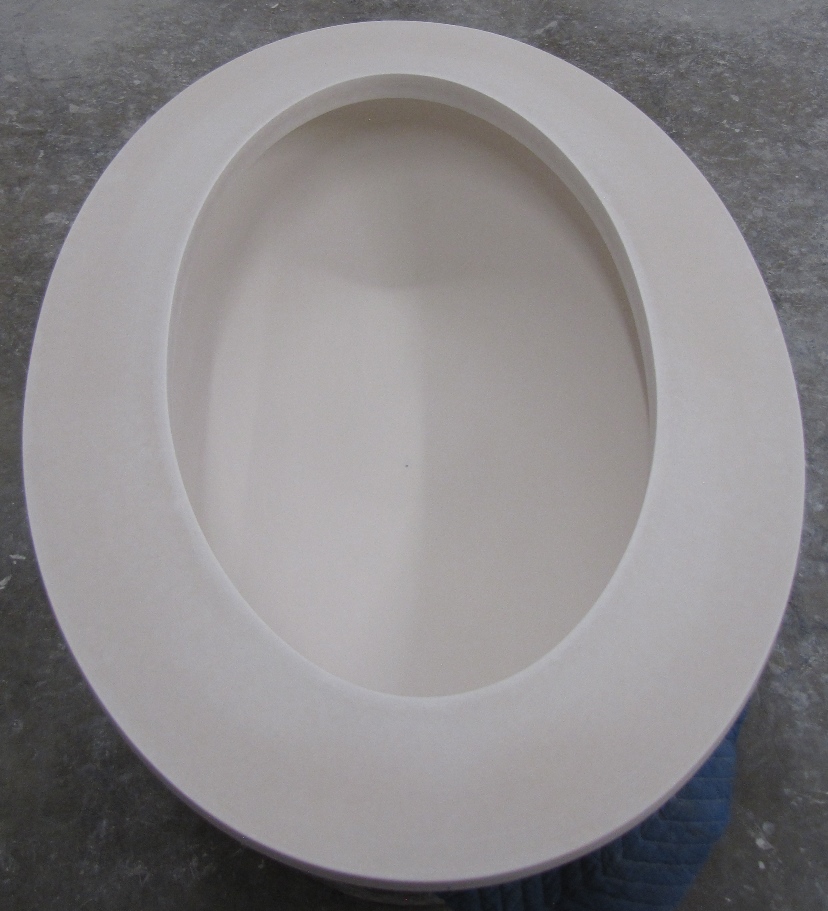

Dome with Contemporary Light
Cove.
|
45" L x 22" W Oval Dome
* Dimensions:
45-1/4" length x 22" width, with a 10-3/8"
overall rise (i.e. depth).
See diagrams.
* Optional
Light Coves (i.e. light shelves) add approximately 6" to length
&
width, and are installed after drywall.
See light cove installation suggestions.
* Optional Casings/Trims also available.
* Also available
in GFRG Limestone
Cast
(includes actual limestone, porosity, 5 limestone finish selections, durable matte
finish sealer, and 4 simulated grout
joints in light cove).
See
sample pictures and the photo to the right.
45"x22" Dome:
$589.97
Standard Add-On Options
For a
shipping
quote, email
info@rwm-inc.com or call
801-268-2400
|

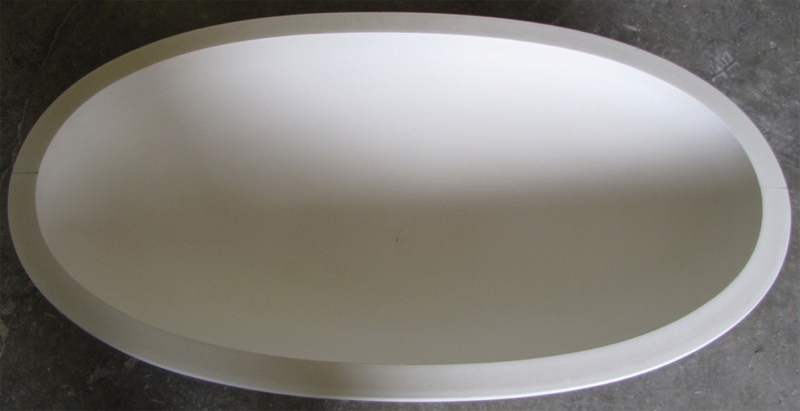

45"x22" Oval Dome by itself —
without an optional
light cove or casing.

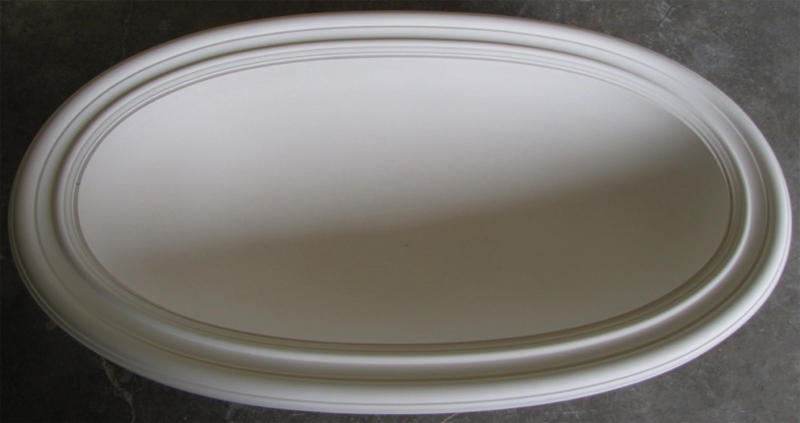

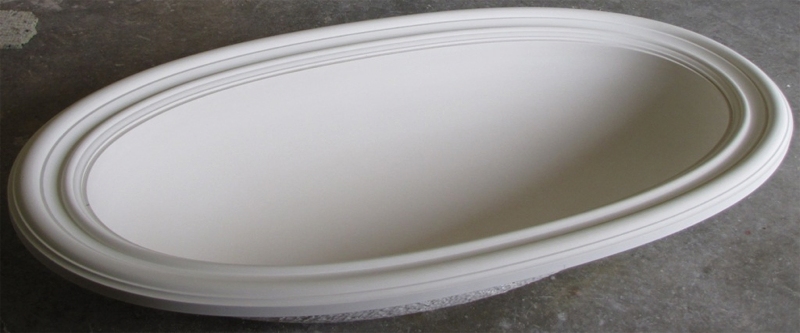

Dome
and Casing
(Profile 2).
Another
view.
Dome &
Traditional Light Cove in our GFRG Limestone Cast (Antique color with
grout joints — available in other colors). |

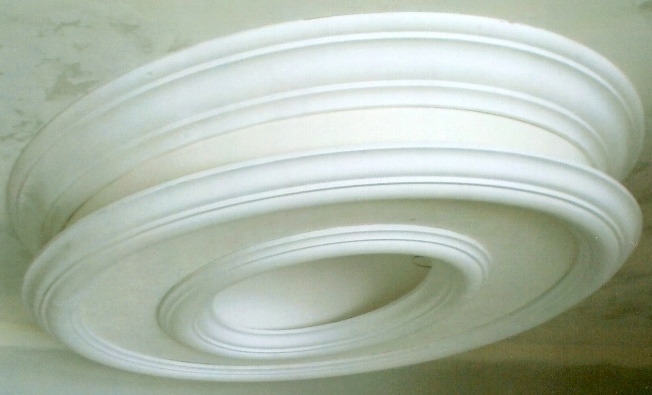

45"
L x 30" W Oval Dome
* Dimensions:
45-1/4" length x 30-1/8" width, with a 12-1/2"
overall rise (i.e. depth).
See diagrams.
* Optional
Light Coves (i.e. light shelves) add approximately 6" to length
&
width, and are installed after drywall.
See light cove installation suggestions.
* Optional
Casings/Trims also available.
* Also available
in GFRG Limestone
Cast
(includes actual limestone with various
color options, porosity, durable matte
finish sealer, and 4 or 8 simulated grout
joints in light cove).
See
sample pictures and the photo to the right.
45"x30" Dome:
$594.97
Standard Add-On Options
For a
shipping
quote, email
info@rwm-inc.com or call
801-268-2400 |

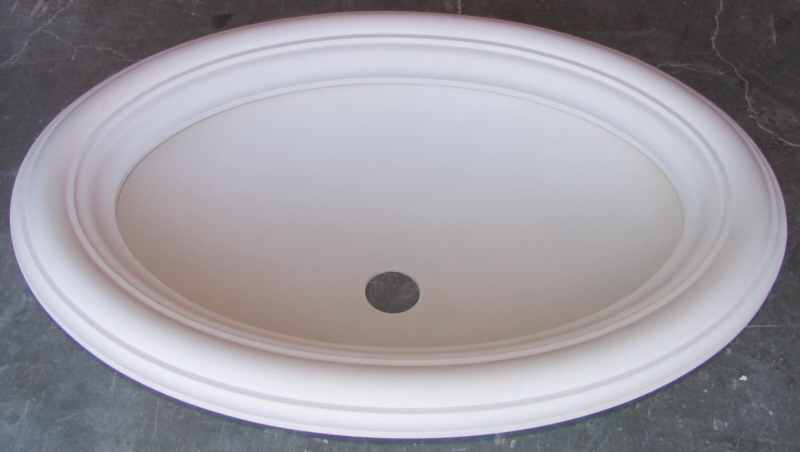

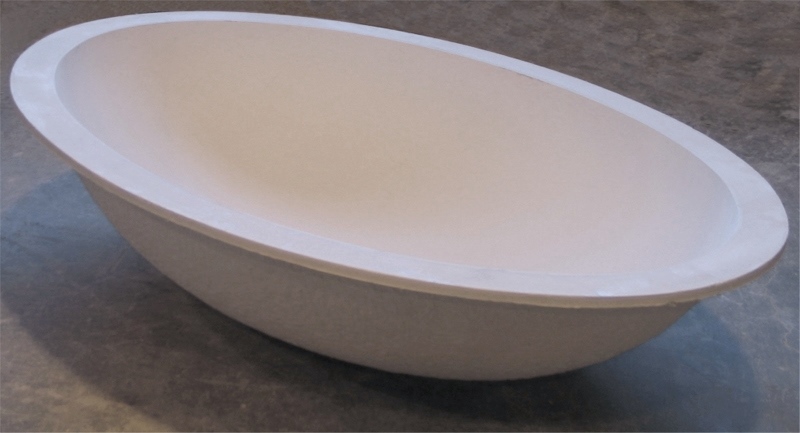

45"x30" Oval
Dome.
Dome with
Traditional
Light Cove.

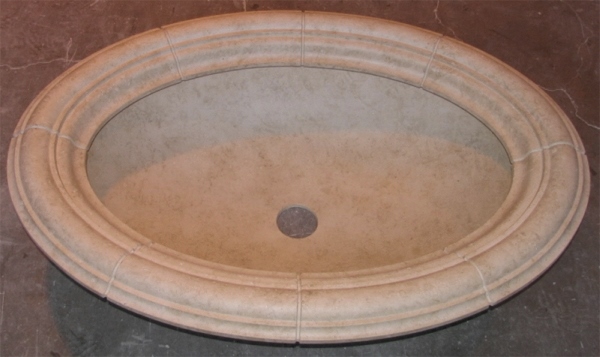

Dome
with
Traditional Light Cove in our
GFRG Limestone
Cast (Antique
color with grout joints and additional custom color
modelling — available in other colors).

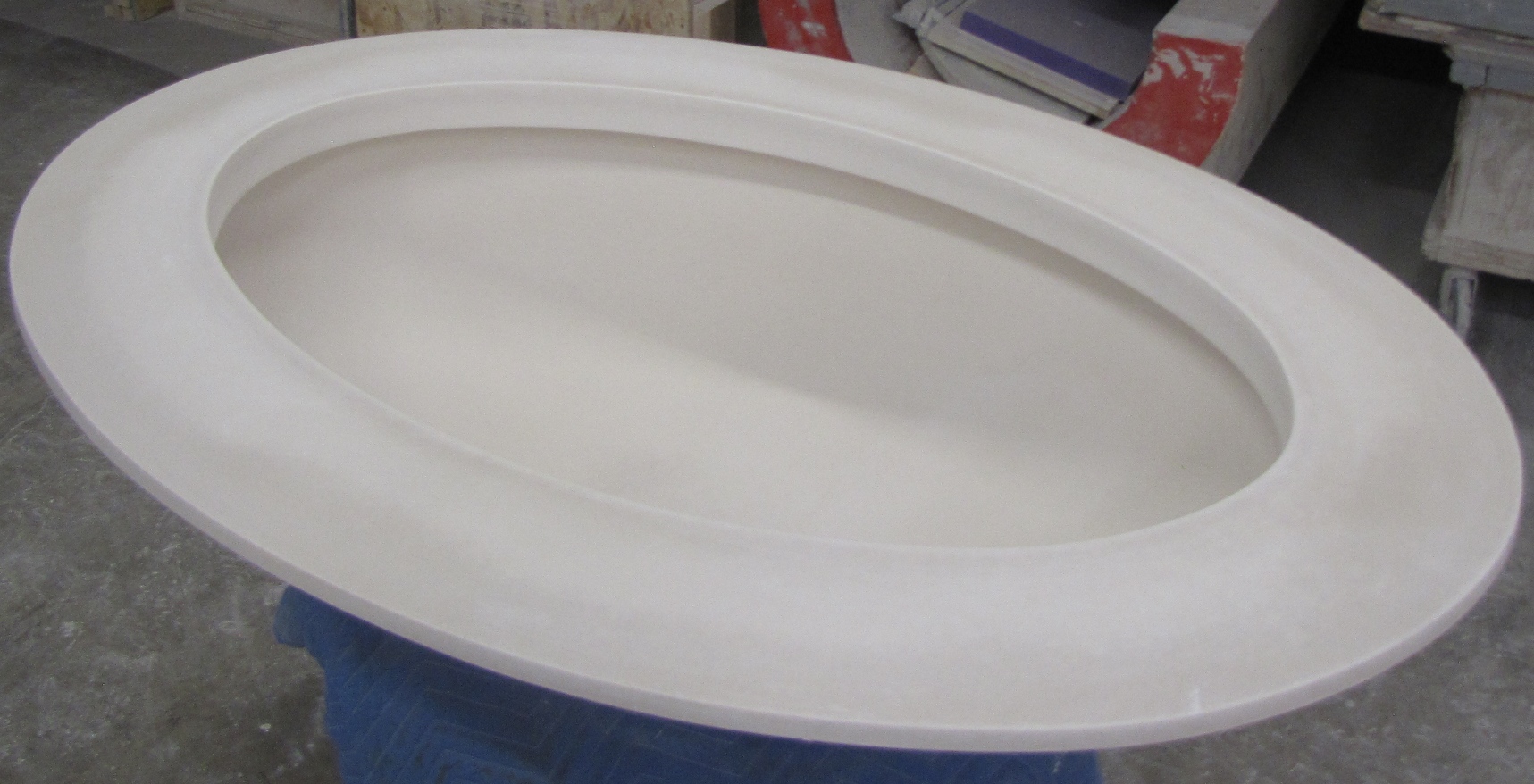

Dome
with Contemporary Light Cove.
Dome with Traditional Light Cove
and additional custom crowns. |
49"
L x 37" W Oval Dome
* Dimensions:
49" length x 37" width, with a 10-1/2"
overall rise (i.e. depth).
See diagrams.
* Optional
Light Coves (i.e. light shelves) add approximately 6" to length
&
width, and are installed after drywall.
See light cove installation suggestions.
* Optional
Casings/Trims also available.
* Also available
in GFRG Limestone
Cast
(includes actual limestone with various
color options, porosity, durable matte
finish sealer, and 8 simulated grout
joints in light cove).
See
sample pictures and the photo to the right.
49"x37" Dome:
$644.97
Standard Add-On Options
For a
shipping
quote, email
info@rwm-inc.com or call
801-268-2400 |

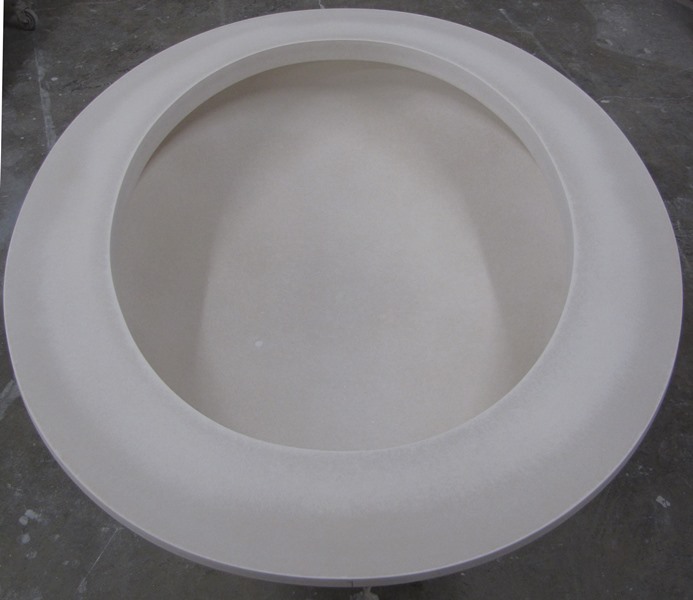

49"x37" Oval Dome with Contemporary Light Cove.

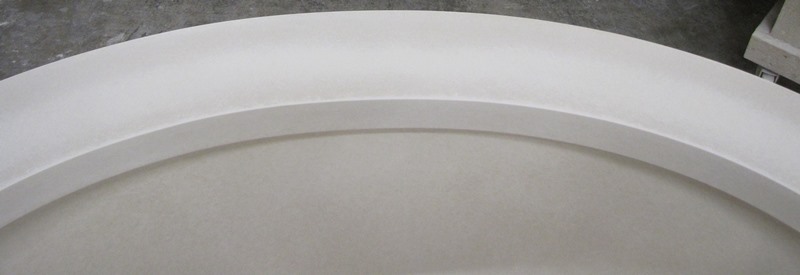

Closeup view.

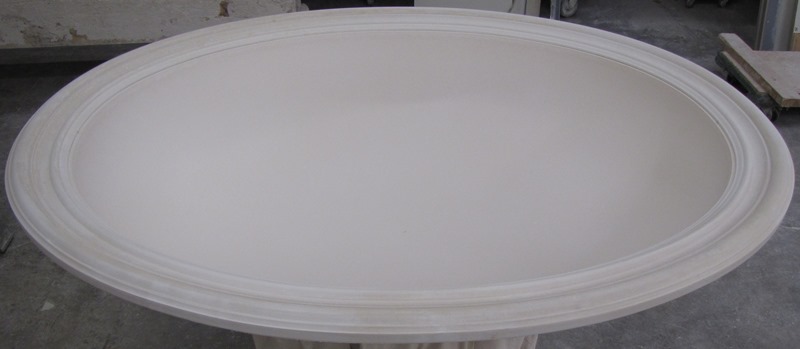

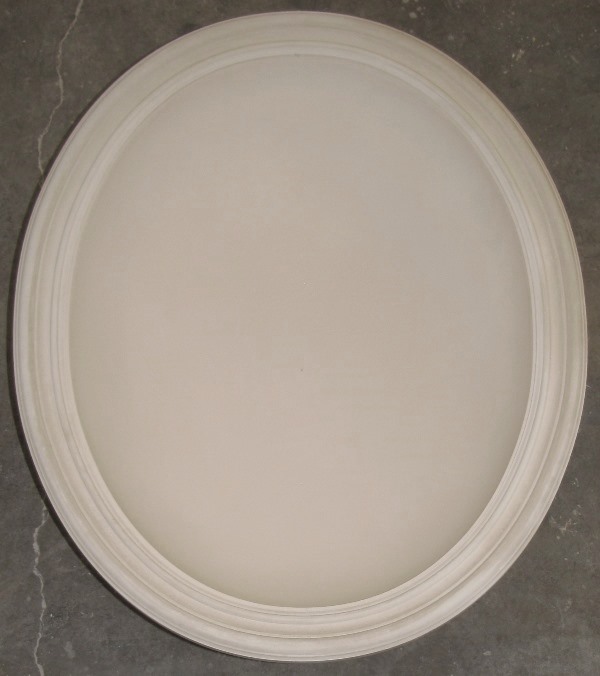

Dome with Casing (Profile 2).
Another view.

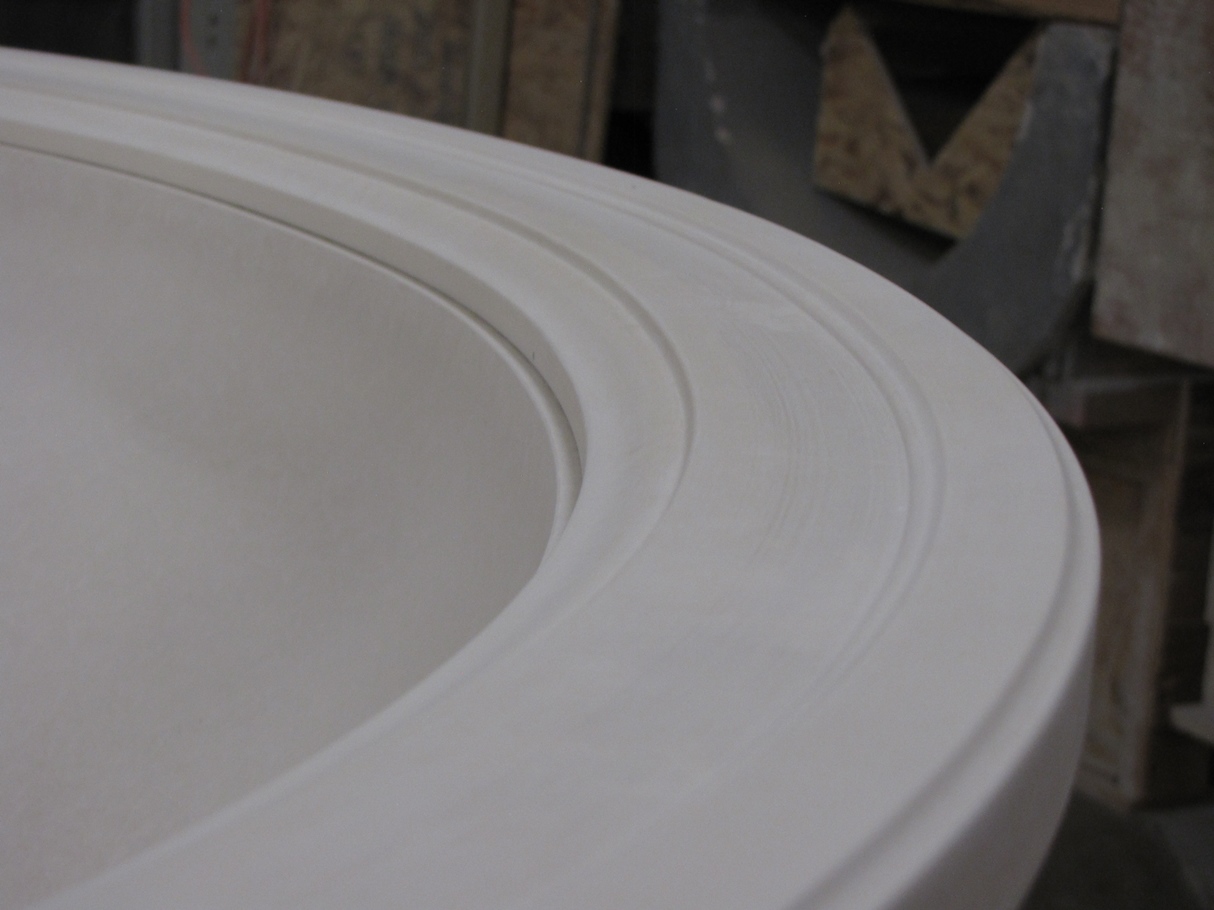

Dome with Casing (Profile 4). |
64" L x 38" W Oval Dome
* Dimensions:
64" length x 38" width, with a
9-7/8" overall rise (i.e. depth).
See diagrams.
* Optional
Light Coves (i.e. light shelves) add approximately 6" to length and
width, and are installed after drywall.
See light cove installation suggestions.
* Optional
Casings/Trims also available.
* Also available
in GFRG Limestone
Cast
(includes actual limestone with various
color options, porosity, durable matte
finish sealer, and 8 simulated grout
joints in light cove).
See
sample pictures.
64"x38"
Dome:
$974.97
Standard Add-On Options
For a
shipping
quote, email
info@rwm-inc.com or call
801-268-2400 |

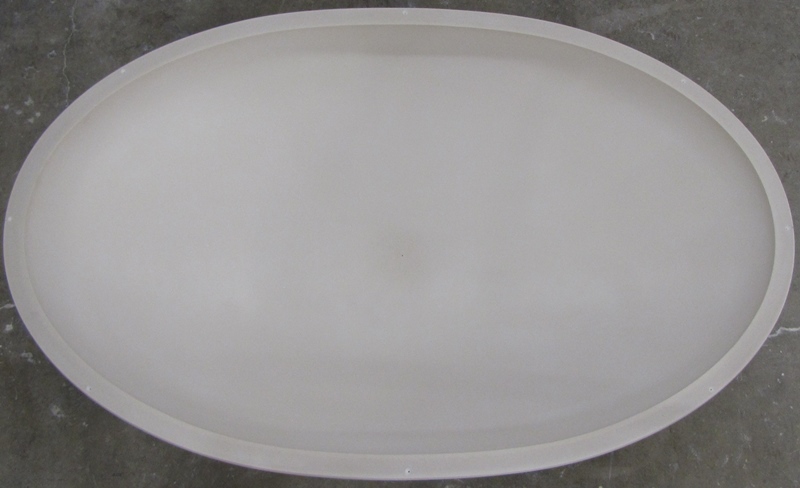

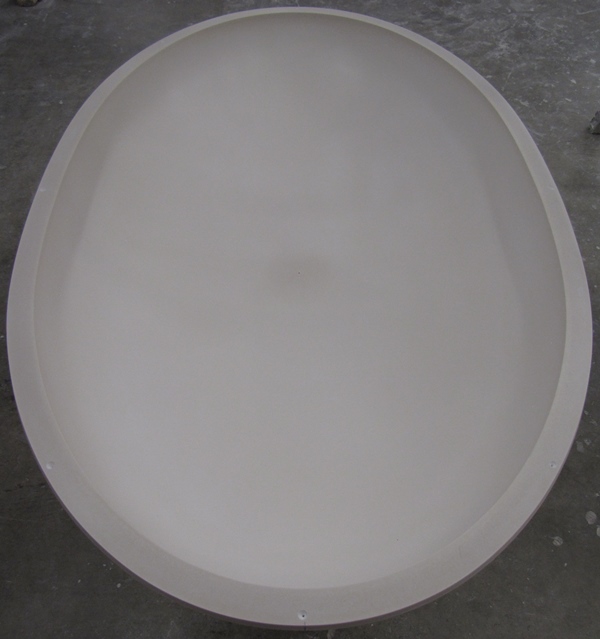

64"x38" Oval Dome.
Another view.

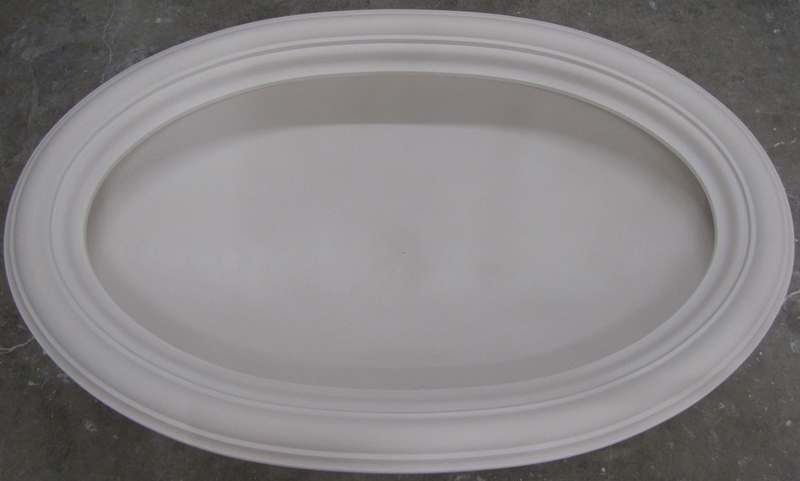

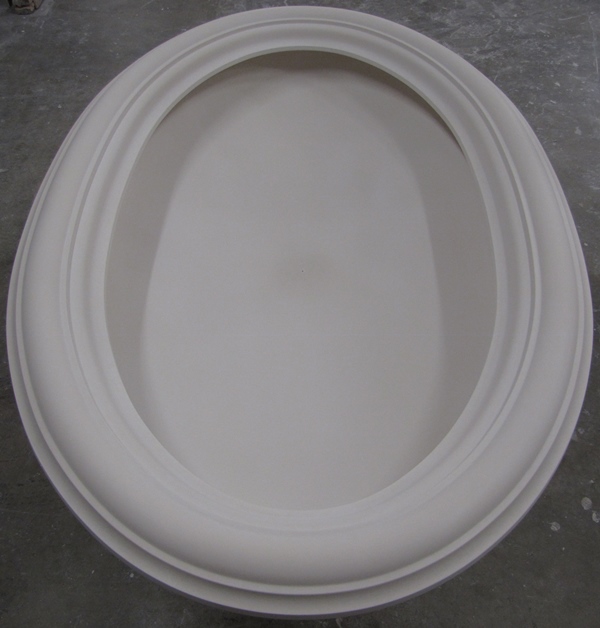

64"x38" Oval Dome with
Traditional Lightcove.
Another view.

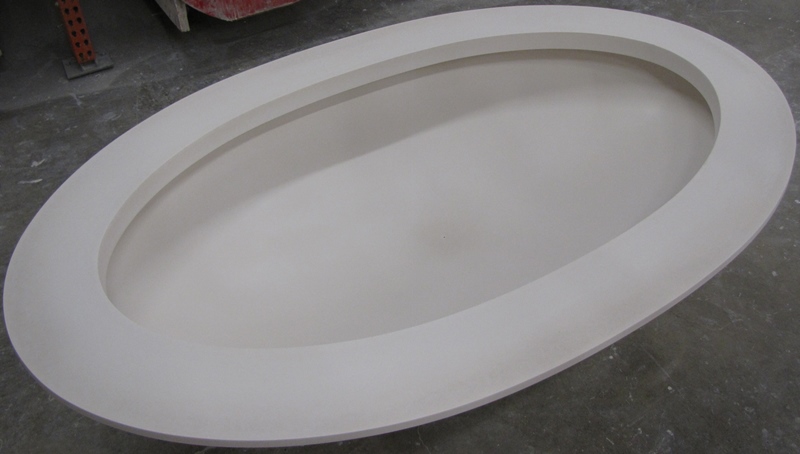

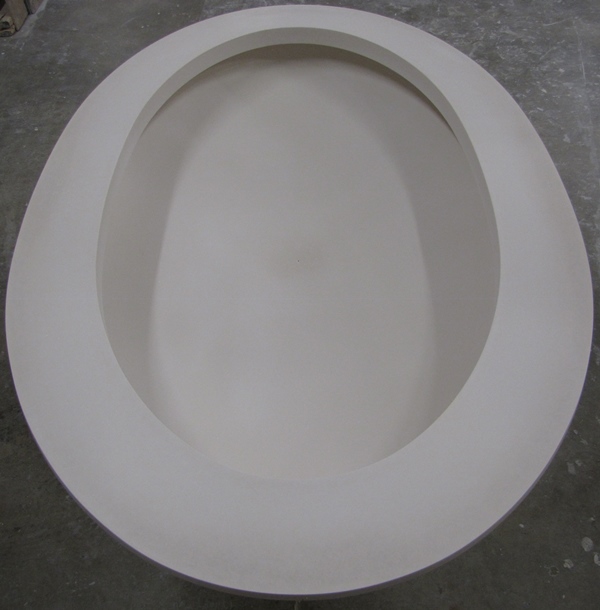

64"x38" Oval Dome with
Contemporary Lightcove.
Another view.
|
70"
L x 40" W Oval Dome
* Dimensions:
70" length x 40" width, with a
6" overall rise (i.e. depth).
See drawings.
* Optional
Bullnose or Contemporary Light Cove (i.e. light shelf) adds approximately 6" to length and
width, and is installed after drywall.
See light cove installation suggestions.
* Optional
Casings/Trims also available.
* Also available
in GFRG Limestone
Cast
(includes actual limestone with various
color options, porosity, durable matte
finish sealer, and 8 simulated grout
joints in light cove).
See
sample pictures.
70"x40"
Dome:
$1,034.97
Standard Add-On Options
For a
shipping
quote, email
info@rwm-inc.com or call
801-268-2400 |

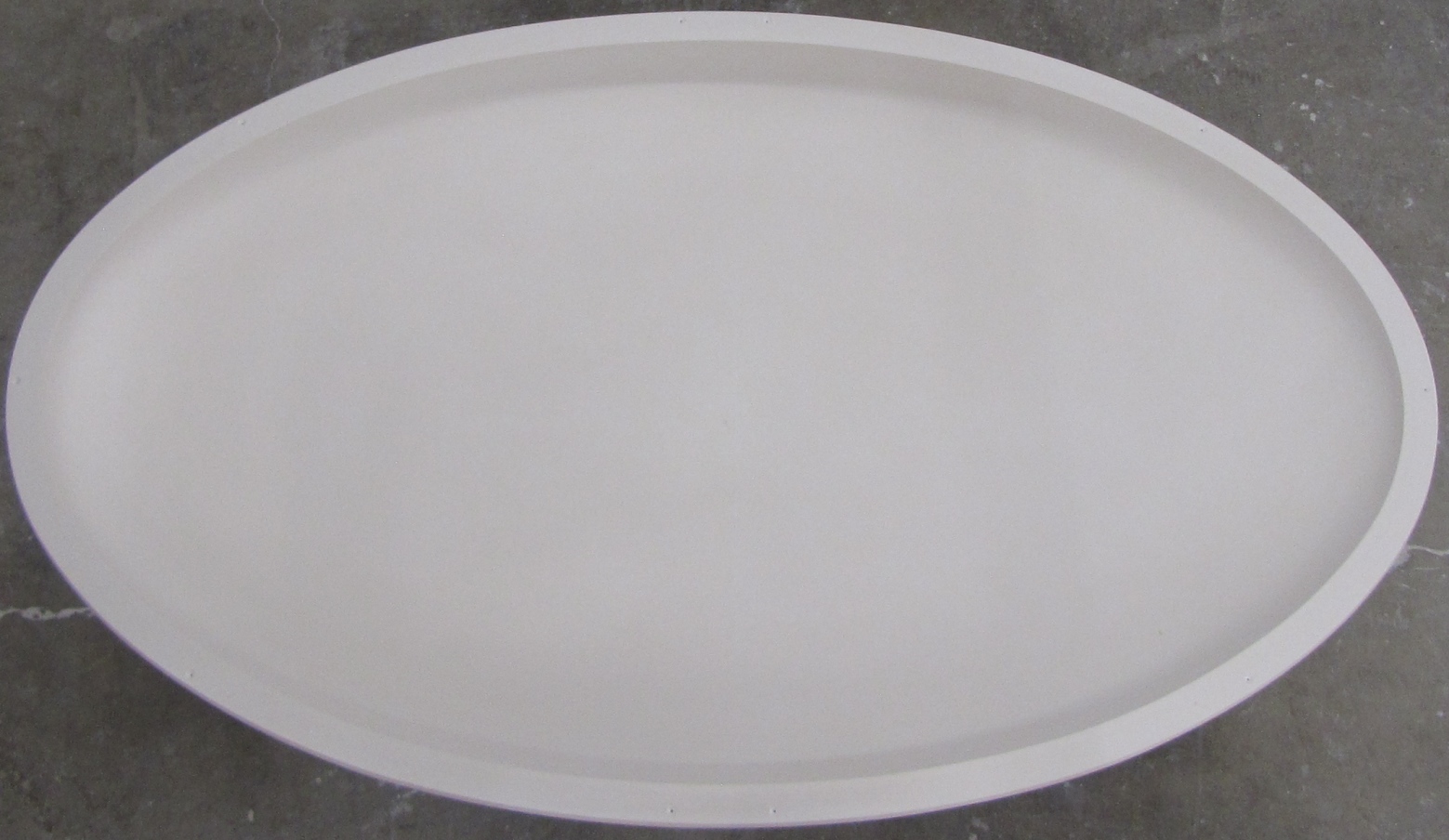

70"x40" Oval Dome. Shallower rise is ideal
for homes with limited ceiling space.

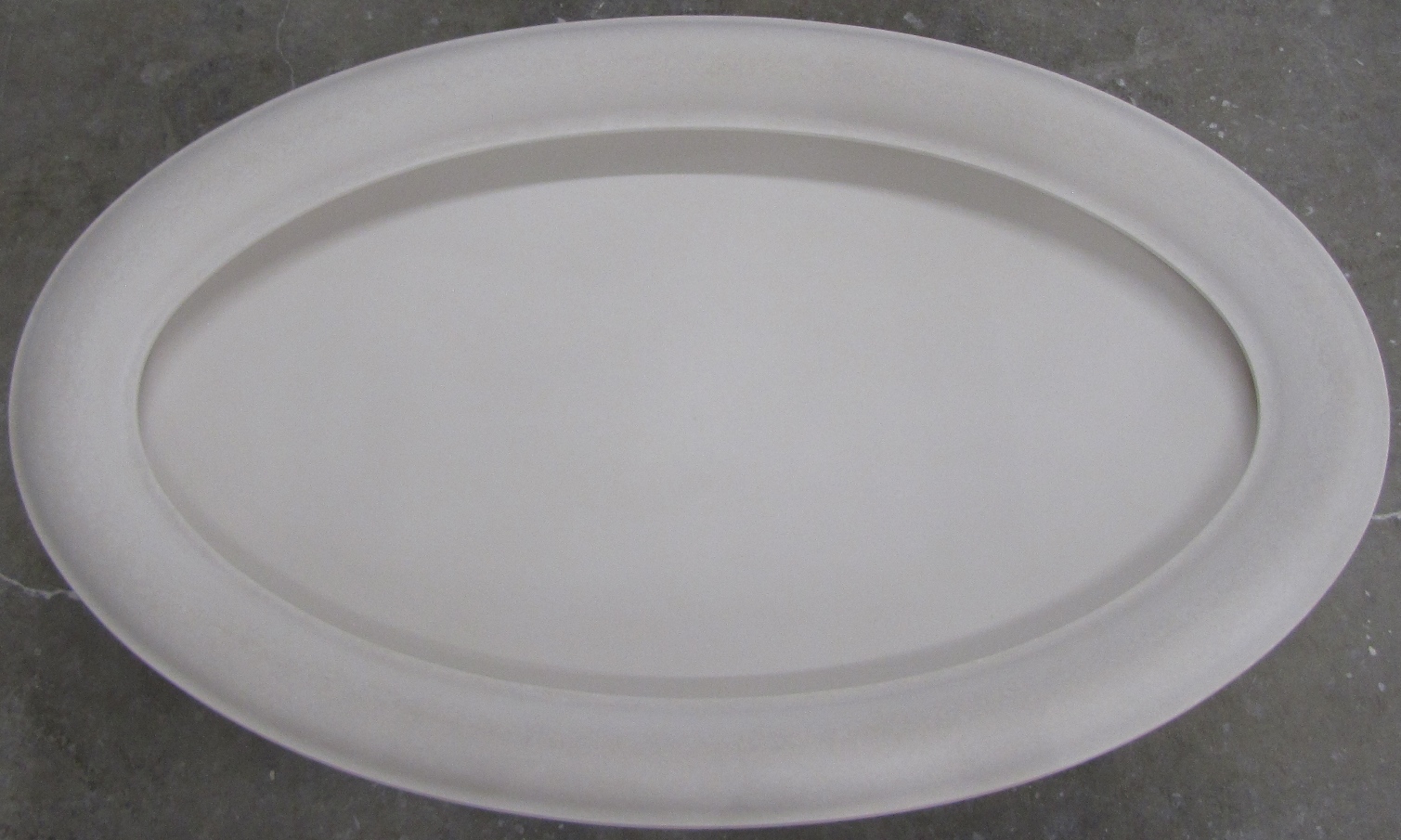

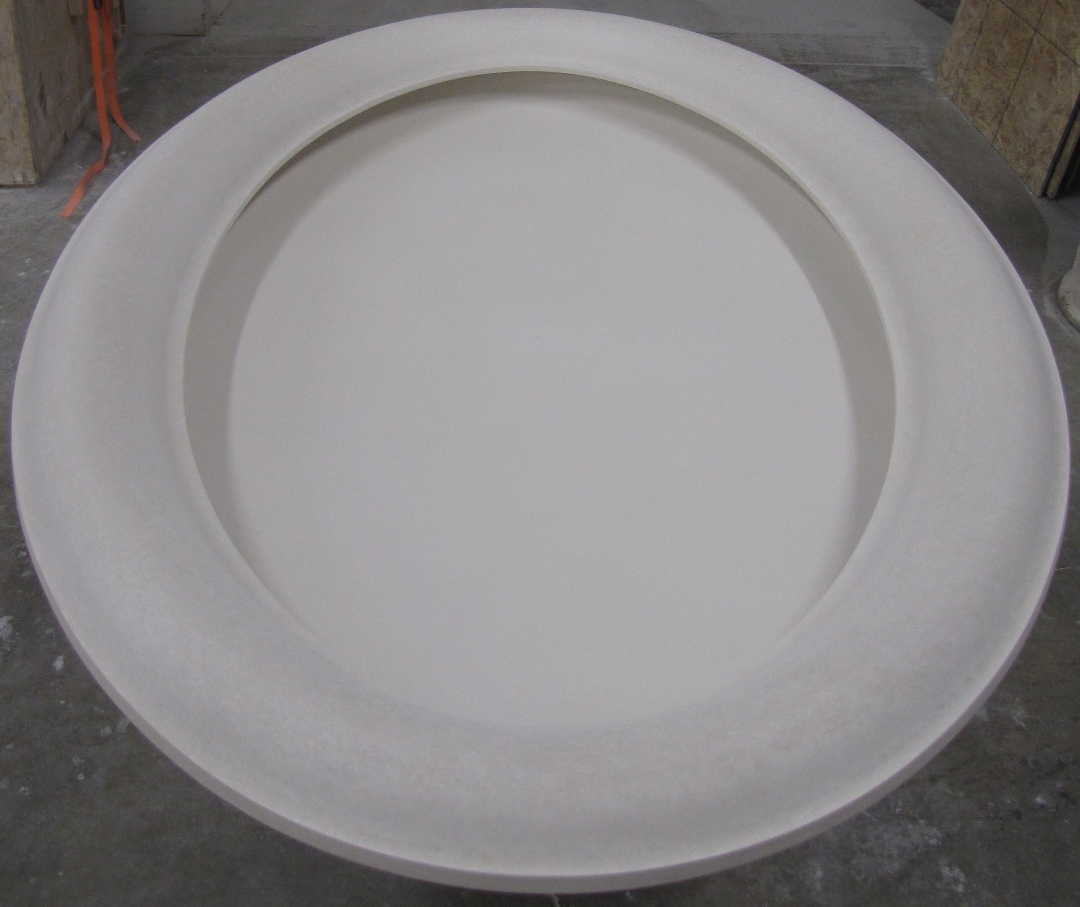

70"x40" Oval Dome
with Bullnose Light Cove.
Another view of 70"x40" Oval Dome
with Bullnose Light Cove.

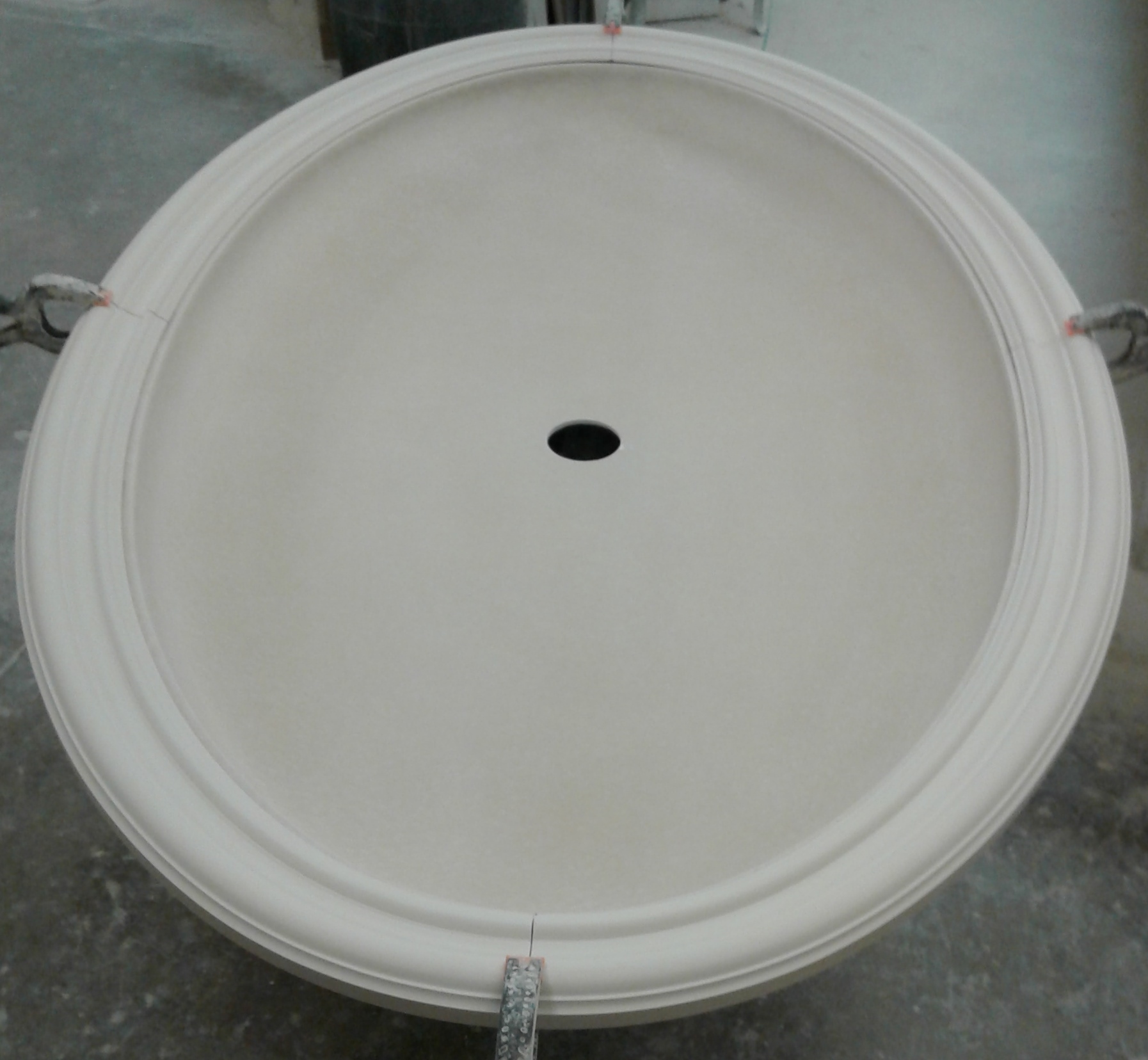

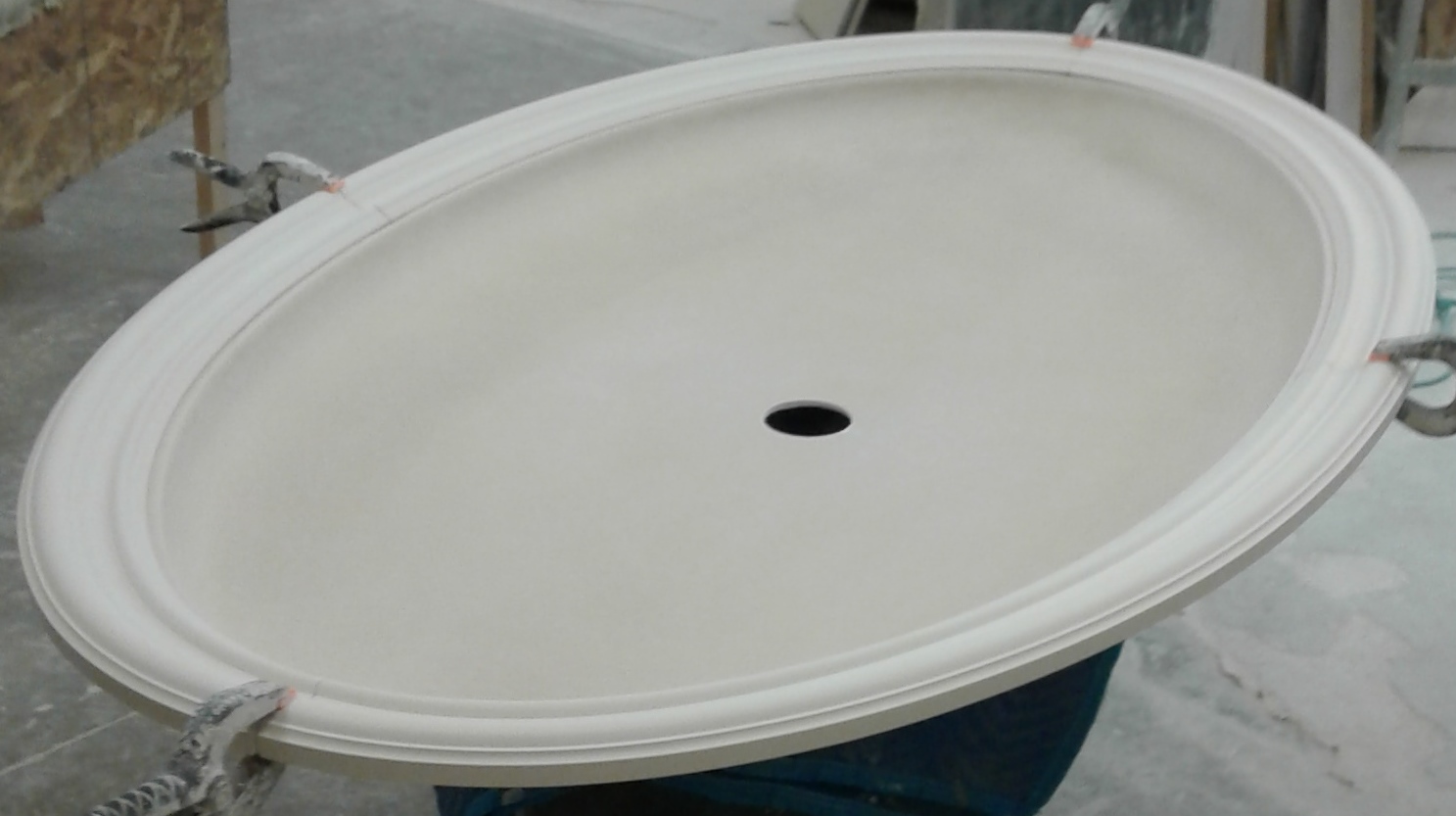

70"x40" Oval Dome
with a Profile 2 Casing, ready to crate and ship.
Another view. |
80"
L x 46" W Oval Dome
* Dimensions:
80-3/8" length x 46" width, with a
7-1/2" or 12-9/16" overall rise (i.e. depth).
See diagrams.
* Optional
Light Coves (i.e. light shelves) add approximately 6" to length and
width (5-1/2" for the Contemporary profile), and are installed after drywall.
See light cove installation suggestions.
* Optional
Casings/Trims also available (for 12" rise only).
* Also available
in GFRG Limestone
Cast
(includes actual limestone with various
color options, porosity, durable matte
finish sealer, and 8 simulated grout
joints in light cove).
See
sample pictures.
80x46
Dome
(7"):
$1,184.97
80x46
Dome
(12"):
$1,249.97
Standard Add-On Options
Traditional Light Cove
(for 12" rise only
—
see
diagram) |
$429.97 |
Scrolled Ornaments for
Traditional Light Cove
(for 12"
rise only —
see
pictures)
|
$84.97
each |
Shallower Traditional Light Cove (designed for 7" rise
—
see
diagram) |
$399.97 |
Contemporary Light Cove (see diagram) |
$429.97 |
Casing/Trim (Profiles 1,2,3,
or 4
for 12" rise only) |
$399.97 |
GFRG
Limestone Cast for Dome & Light Cove
(see
samples) |
$525.00 |
For a
shipping
quote, email
info@rwm-inc.com or call
801-268-2400 |

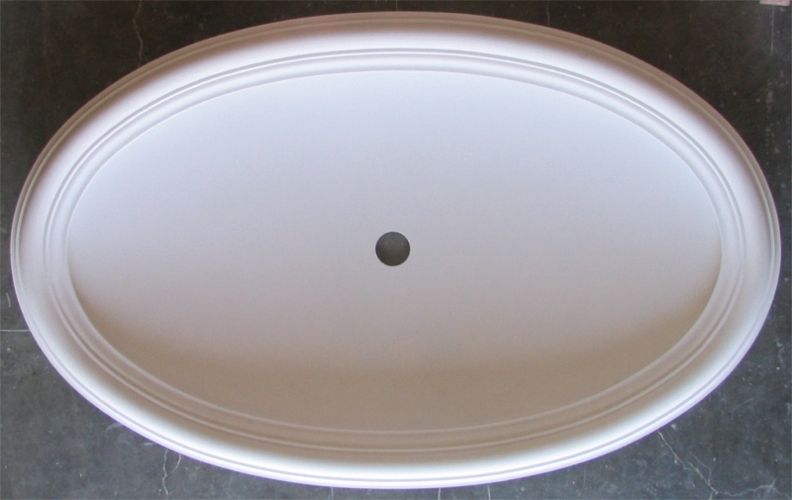

80"x46"
(7"
rise) Oval Dome and
Traditional
Light Cove. This
shallower rise is ideal
for homes with limited ceiling space.

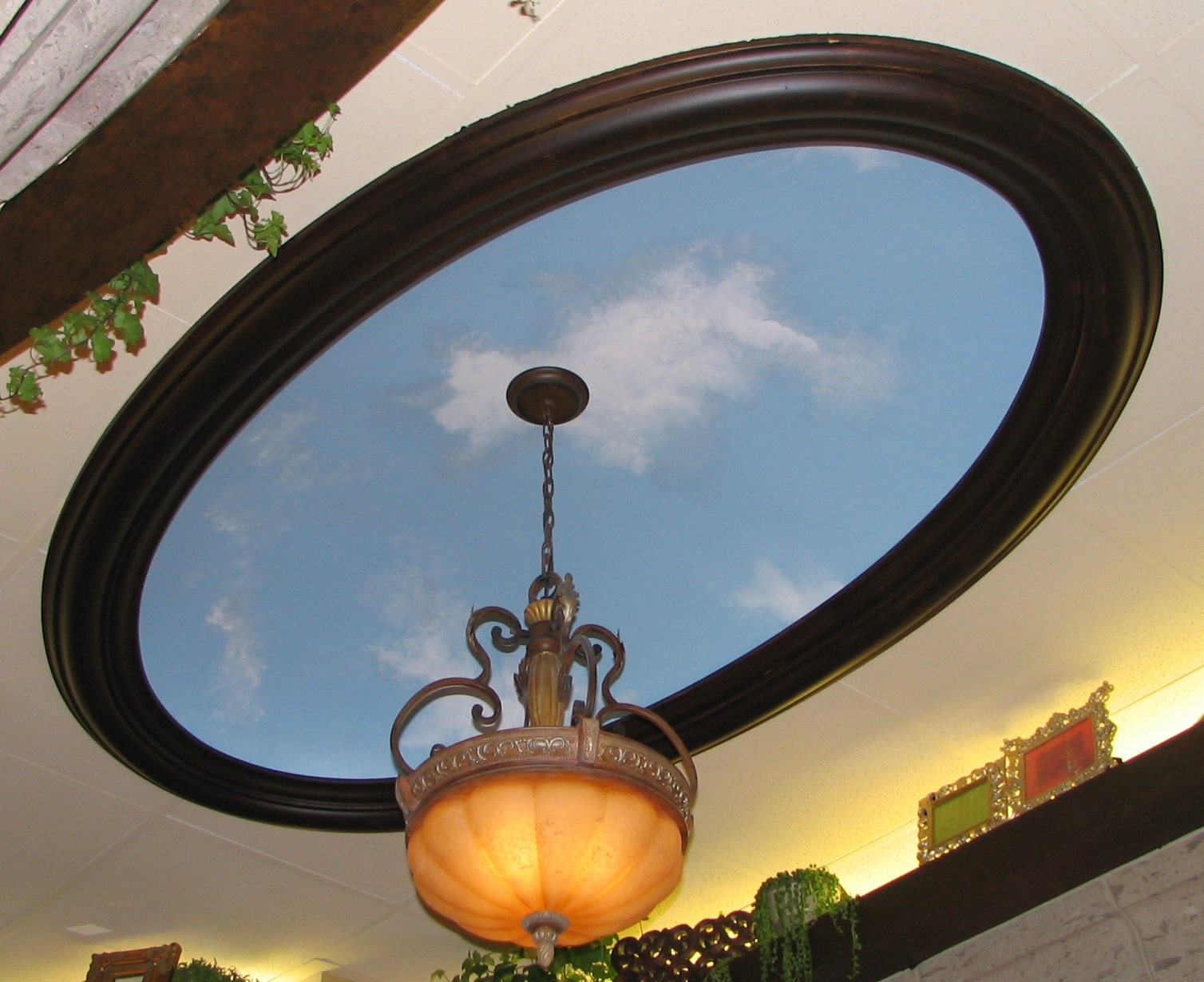

80"x46" (12"
rise) Oval Dome and
Traditional
Light Cove
painted by a local artist.

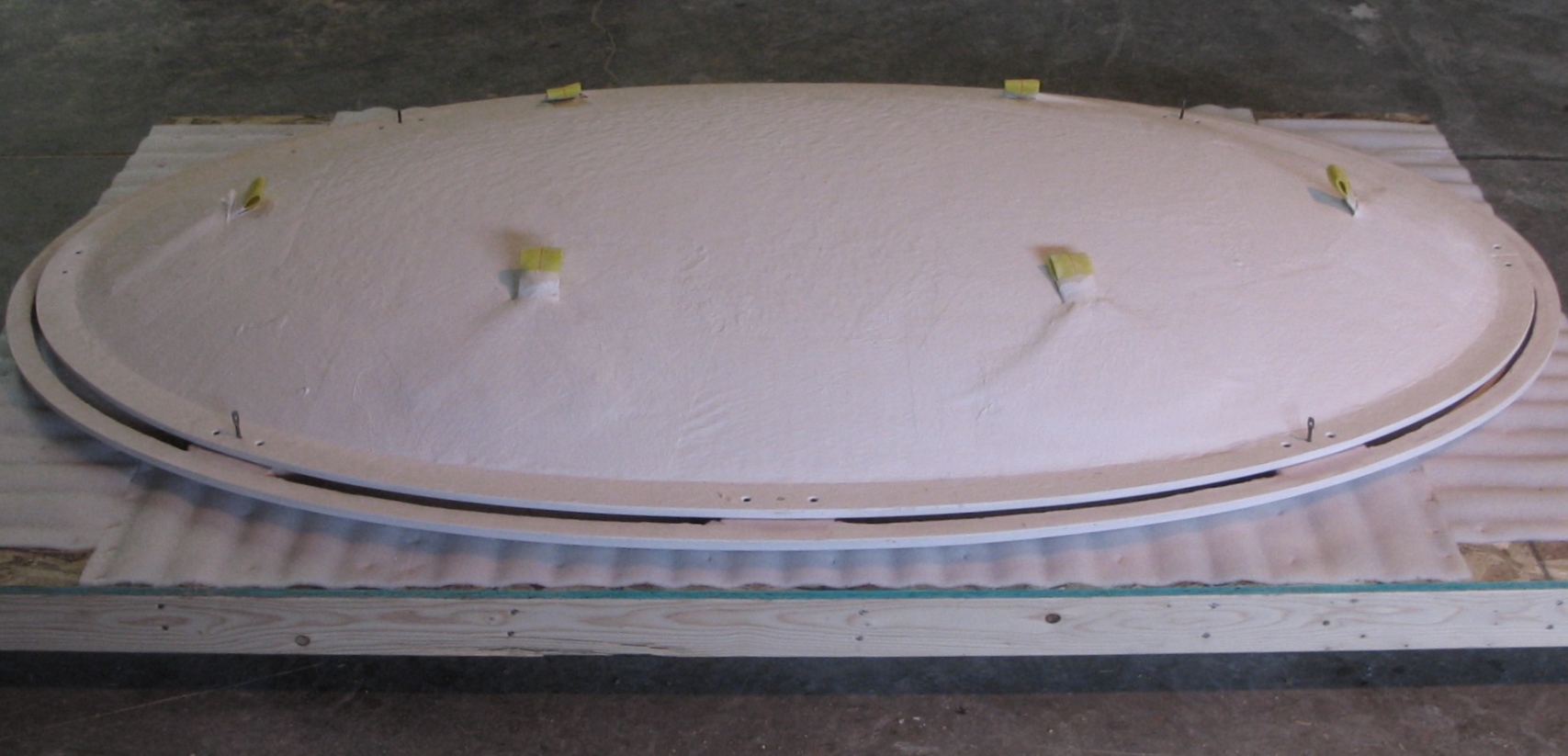

We can prepare Domes for installation
in grid ceilings or tile ceilings. Here we attached the 80"x46" (7"
rise) Oval Dome
to a
Traditional
Light Cove.
Closeup. Eyebolts and/or cast-in heavy-duty looped straps
are used to hang your
suspension wire.
See diagrams on how we typically do this.

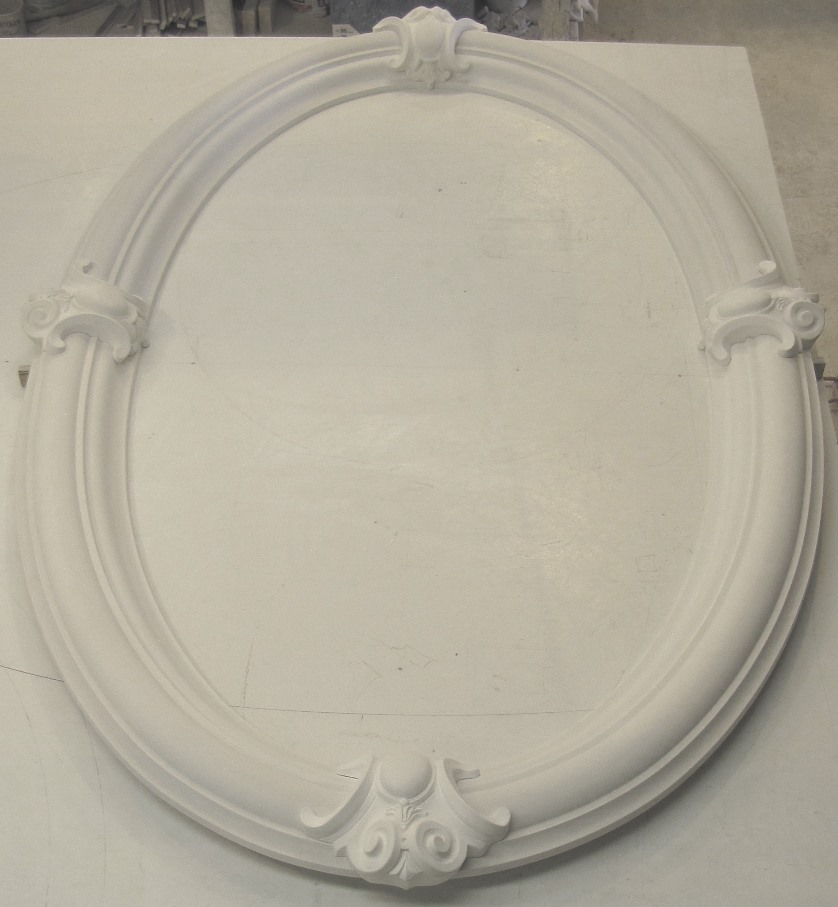

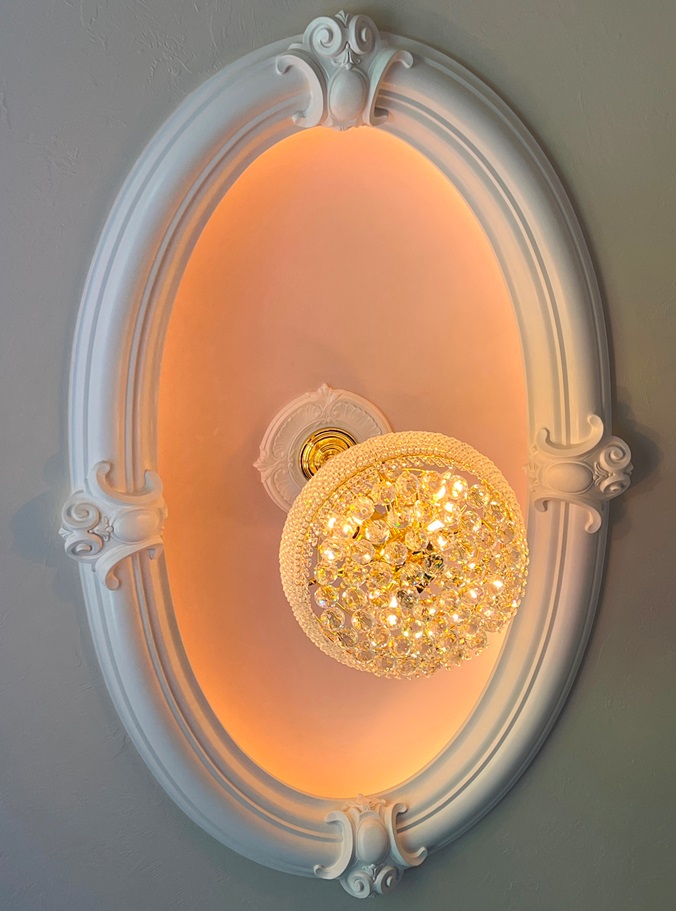

Scrolled Ornaments
for a
Traditional
Light Cove.
See more pictures. |

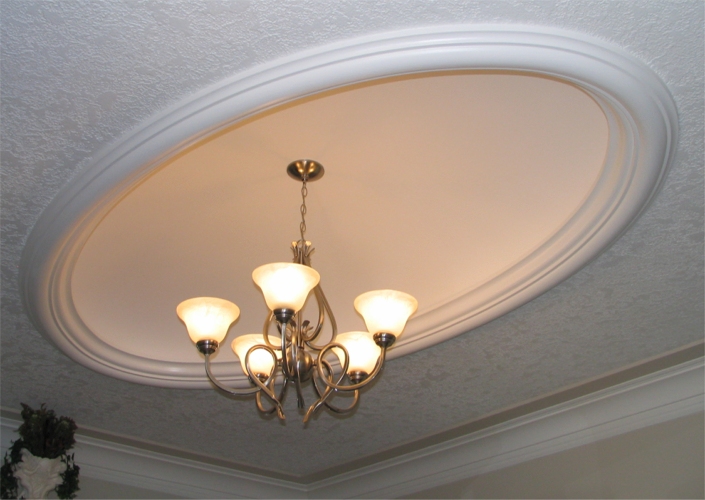

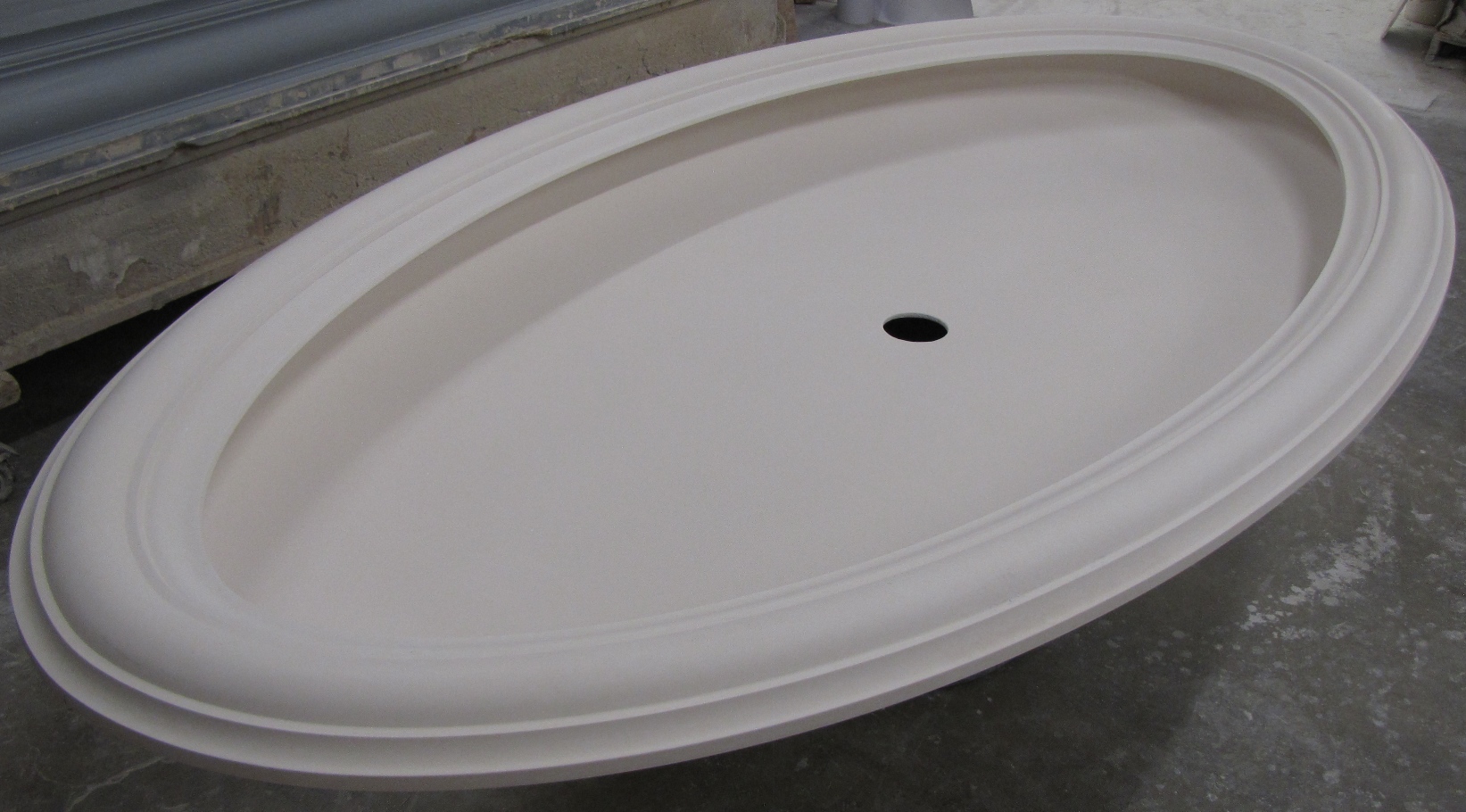

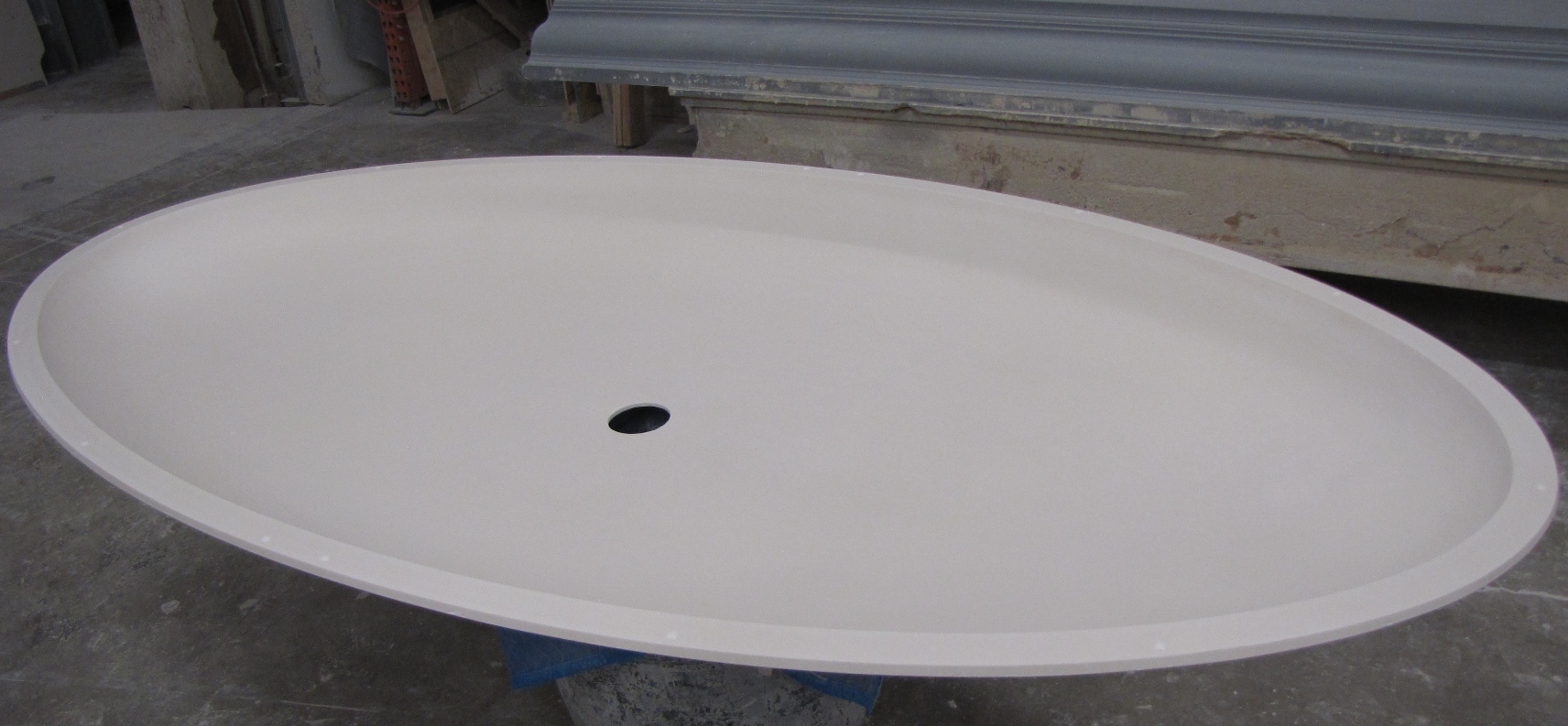

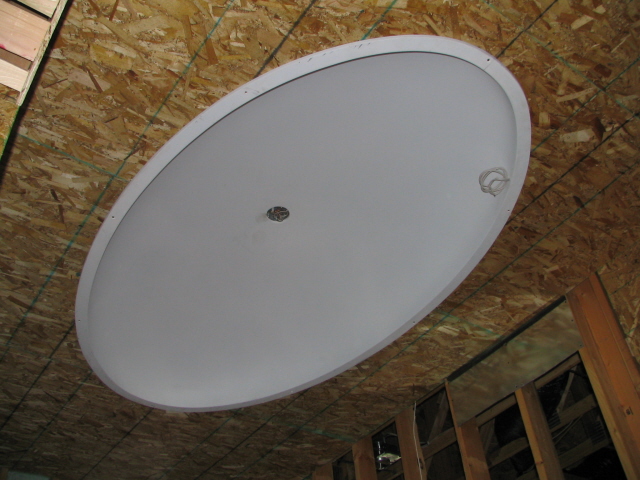

93" L x 54" W Oval Dome
* Dimensions:
93" length x 54" width, with a 9-1/2" or 14-1/2"
overall rise (i.e. depth).
See diagrams.
* Optional
Light Coves (i.e. light shelves) add approximately 6" to length and
width, and are installed after drywall.
See light cove installation suggestions.
* Optional
Casings/Trims also available.
* Also available
in GFRG Limestone
Cast
(includes actual limestone with various
color options, porosity, durable matte
finish sealer, and 8 simulated grout
joints in light cove).

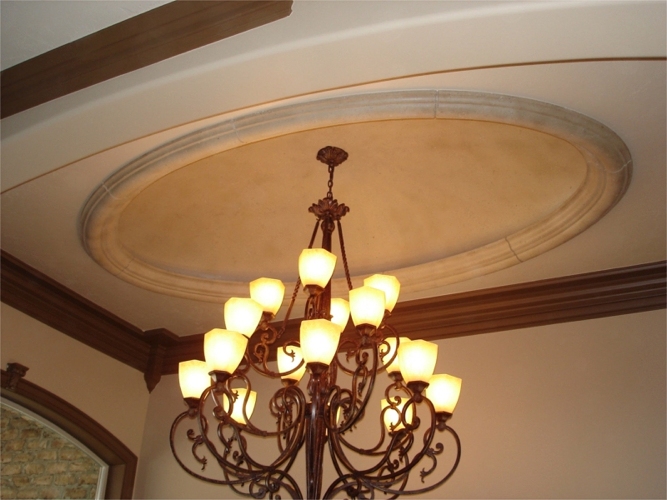

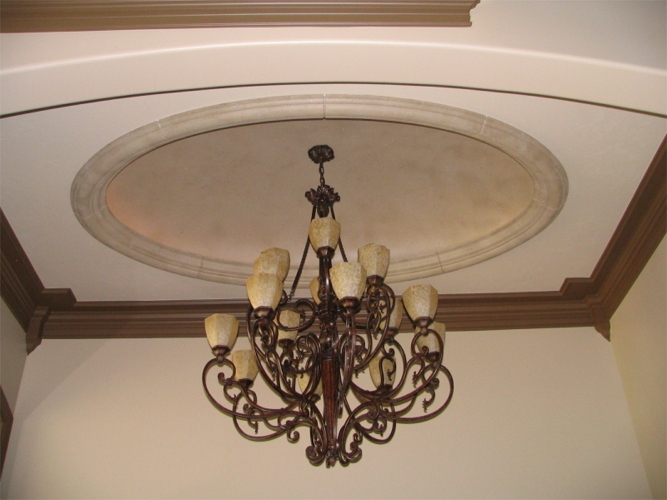

See
sample pictures
and the two lower photos to the right.
93x54
Dome
(9" rise):
$1,589.97
93x54
Dome
(14" rise):
$1,649.97
Standard Add-On Options
Traditional Light Cove (see
diagram) |
$549.97 |
Scrolled Ornaments for Traditional Light Cove
for 12" rise (see
pictures) |
$84.97
each |
Contemporary Light Cove (2-pieces, see diagram) |
$549.97 |

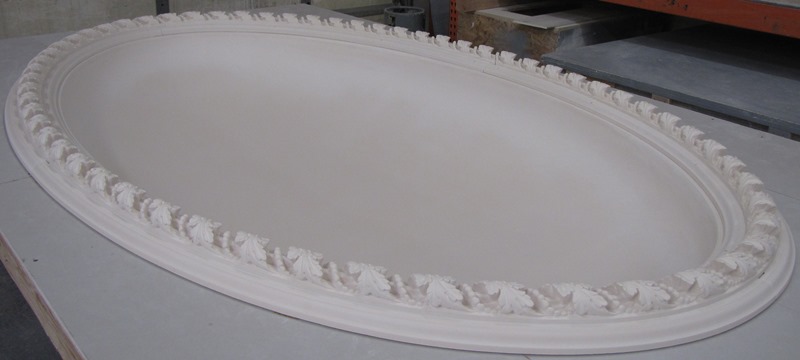

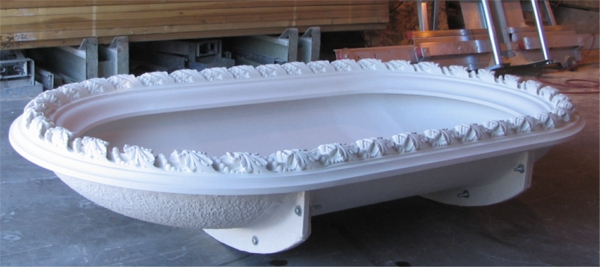

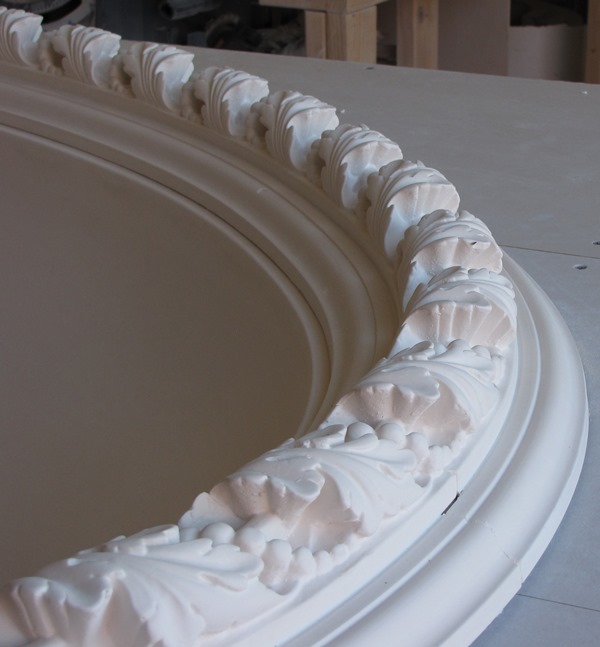

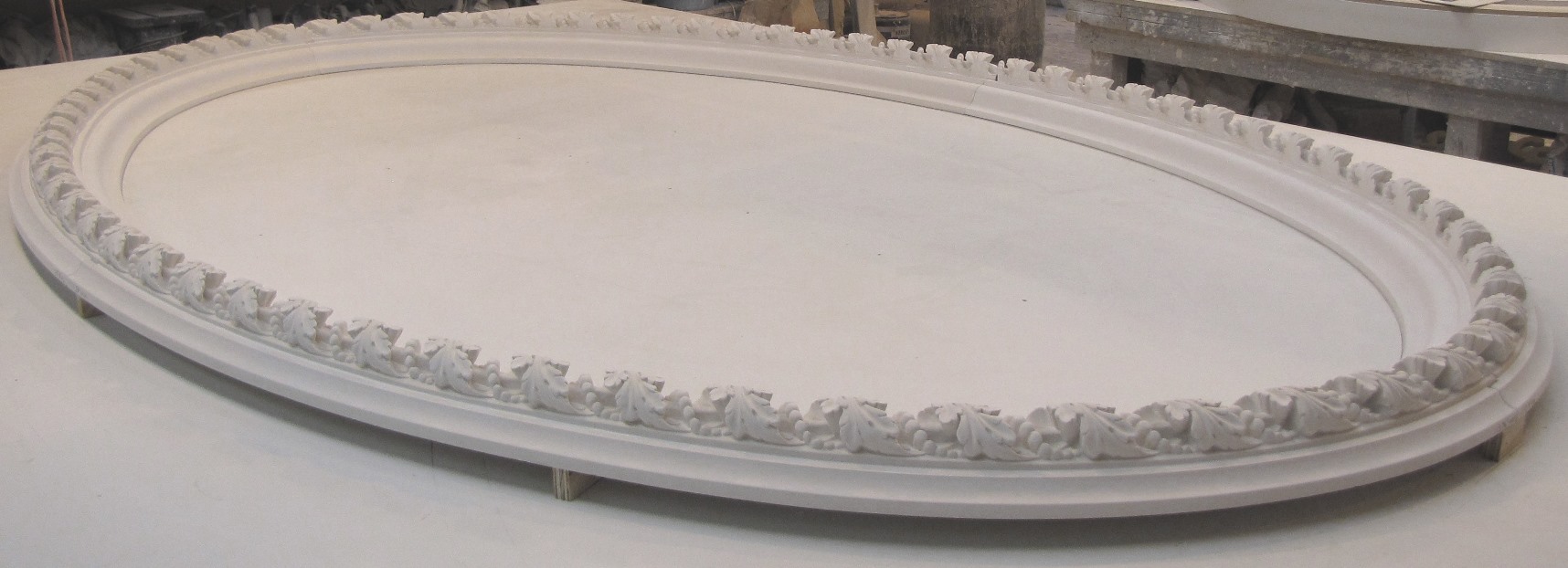

Acanthus & Pearl Casing (see
diagram) |
$1,079.00 |
Casing/Trim (profile by request) |
$499.97 |
GFRG
Limestone Cast for Dome & Light Cove
(see
samples) |
$600.00 |
For a
shipping
quote, email
info@rwm-inc.com or call
801-268-2400 |
93"x54" (9" rise) Oval Dome.
93"x54" (9" rise) Oval Dome with Traditional Light Cove.
Installed 93"x54" (14" rise) Oval Dome.
Optional plywood around the dome's 8-sided
2x4 frame makes it convenient for more points of
anchorment when installing the light cove (after drywall).
93"x54" (14"
rise) Oval Dome &
Traditional
Light Cove.
Dome
& Traditional Light Cove in GFRG Limestone Cast (Antique color with
grout joints — available in other colors).
Another view.
Dome with Acanthus & Pearl Casing.
Close-up view. |
New!
96" L x 48" W Oval Dome
* Dimensions:
96" length x 48" width, with a 7" overall
rise (i.e. depth).
See diagrams.
* Optional
Light Coves (i.e. light shelves) add approximately 6" to length and
width, and are installed after drywall.
See light cove installation suggestions.
* Optional
Casings/Trims also available.
* Also available
in GFRG Limestone
Cast
(includes actual limestone with various
color options, porosity, durable matte
finish sealer, and 8 simulated grout
joints in light cove).
See
sample pictures
and the two lower photos to the right.
96"x48"
Dome:
$1,549.97
Standard Add-On Options
Shallower Traditional Light Cove (see
diagram) |
$529.97 |
Casing/Trim (profile by request) |
$499.97 |
GFRG
Limestone Cast for Dome & Light Cove
(see
samples) |
$580.00 |
For a
shipping
quote, email
info@rwm-inc.com or call
801-268-2400 |

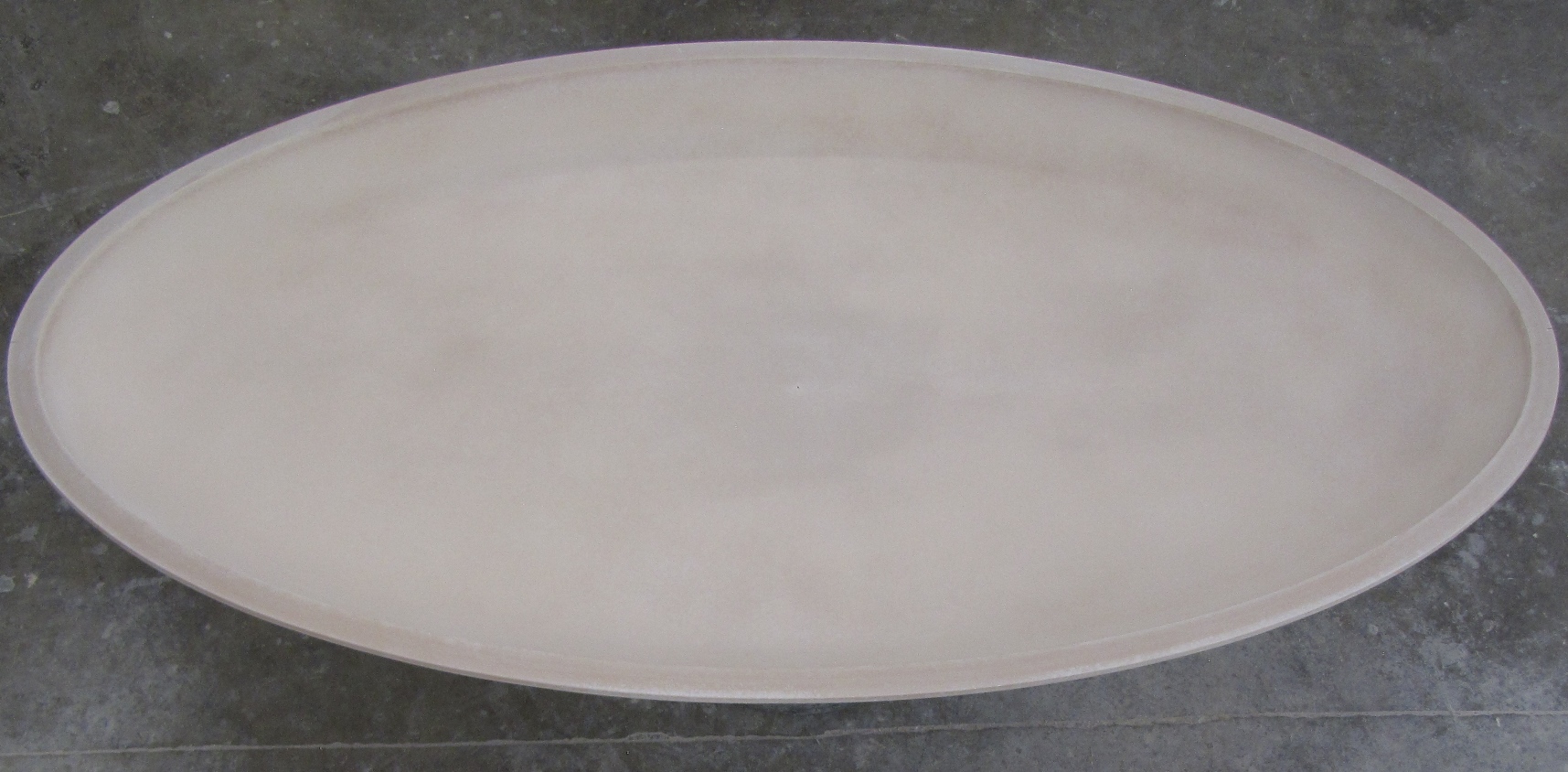

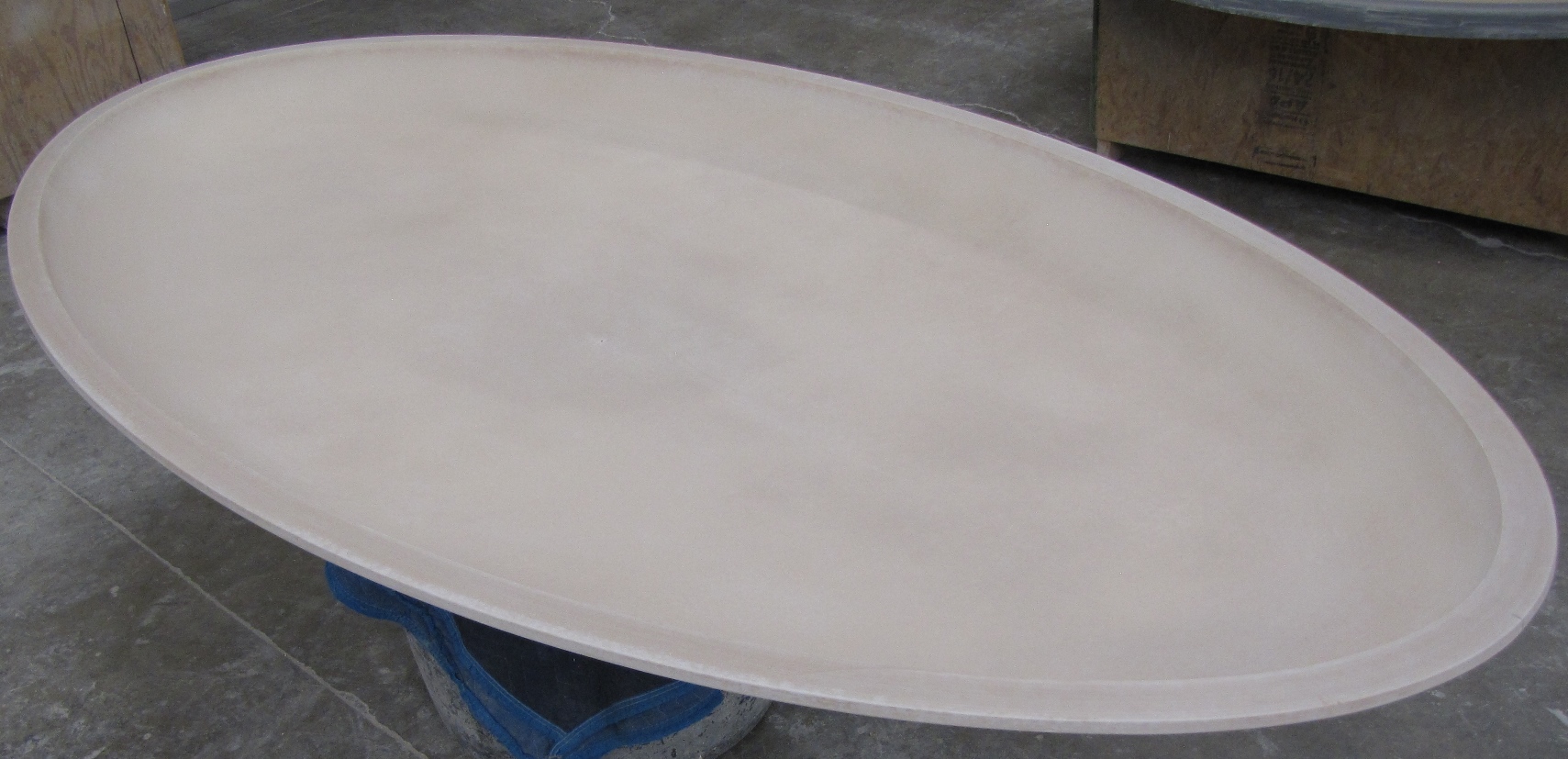

96" L x 48" W (7" rise) Oval Dome.

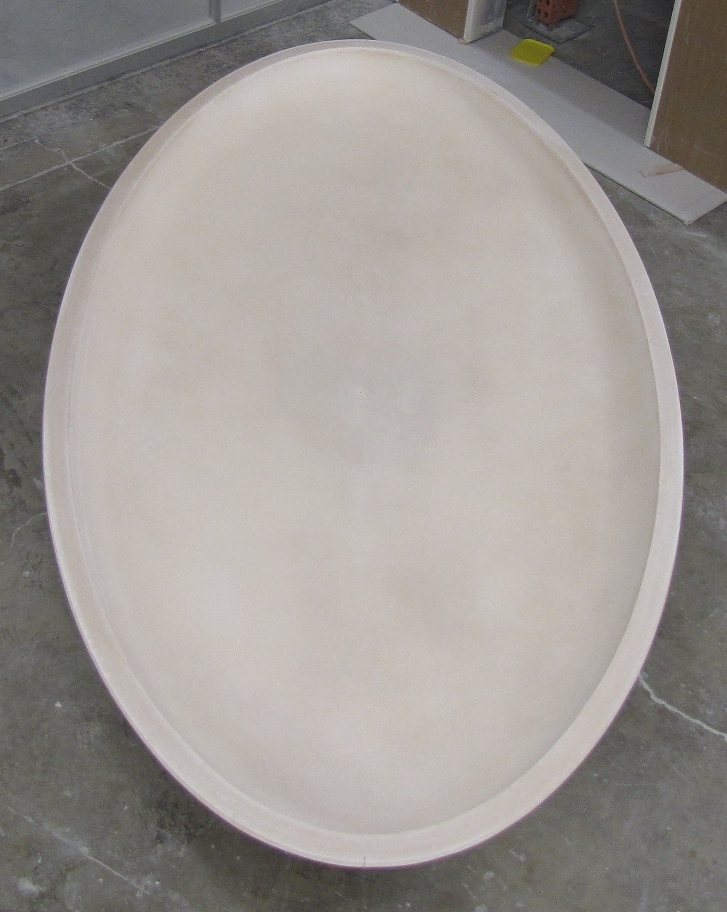

Another view.
Another view.
|
108" L x 70" W Oval
Dome
* Dimensions:
108-1/4" length x 70-1/8" width, with an
11-3/4 overall rise (i.e. depth).
See diagrams.
* Dome also available in 2 parts for an
additional $380. Includes bolt-able flange for seams
and recessed inner
seams for easy perfataping.
* Optional
Light Coves (i.e. light shelves) add approximately 6" to length and
width, and are installed after drywall.
See light cove installation suggestions.
* Optional
Casings/Trims also available.
* 2-1/4"
wide bottom
mount flange and additional
heavy duty strapping cast into Dome for more security.
* Also available
in GFRG Limestone
Cast
(includes actual limestone with various
color options, porosity, durable matte
finish sealer, and simulated grout
joints in light cove).
See
sample pictures.
108"x70" Dome:
$2,589.97
Standard Add-On Options
Traditional Light Cove (1-piece,
see
diagram) |
$899.97 |
Scrolled Ornaments for
Traditional Light Cove (See
pictures) |
$84.97
each |
Contemporary Light Cove (4-pieces, see diagram) |
$899.97 |
Acanthus & Pearl Light Cove (4-piece,
see diagram) |
$1,640.00 |
Casing/Trim (profile
by request) |
TBD |
GFRG
Limestone Cast for Dome & Light Cove
(see
samples) |
$1,068.00 |
For a
shipping
quote, email
info@rwm-inc.com or call
801-268-2400
|

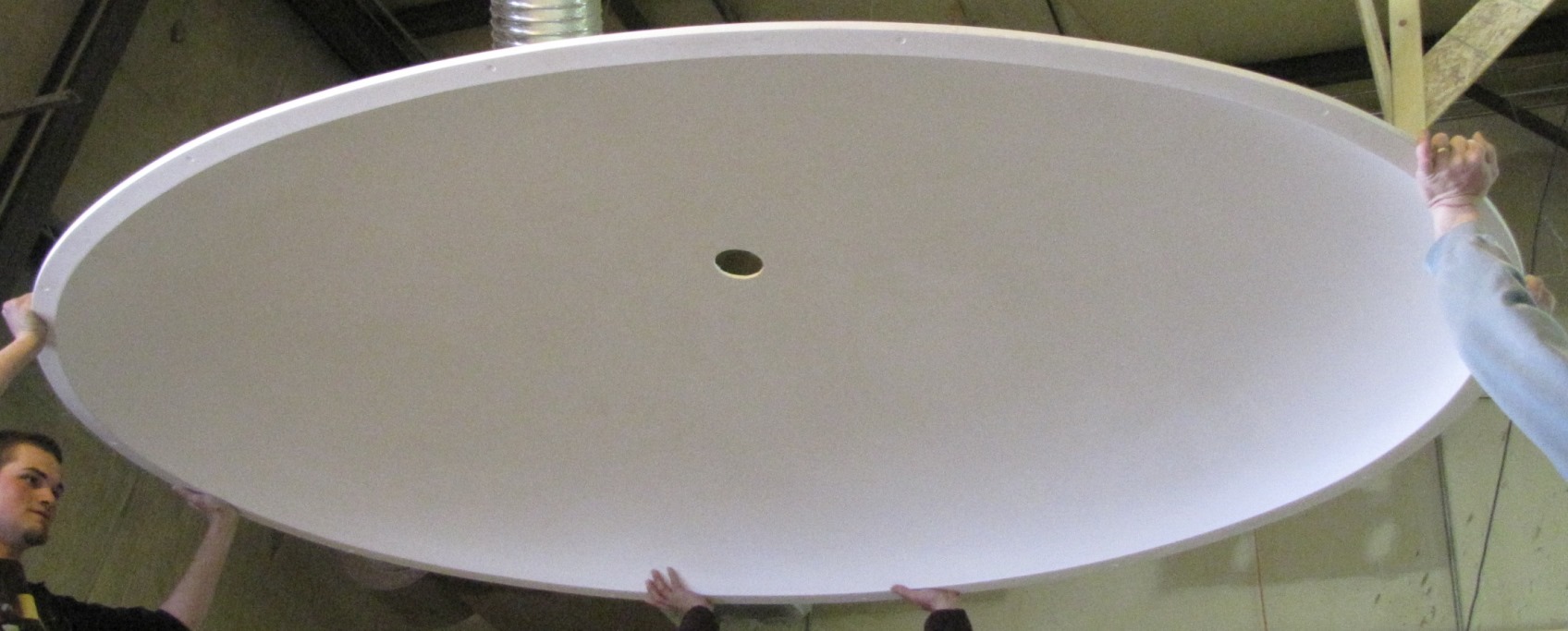

108"x70" Oval Dome,
ready to crate.

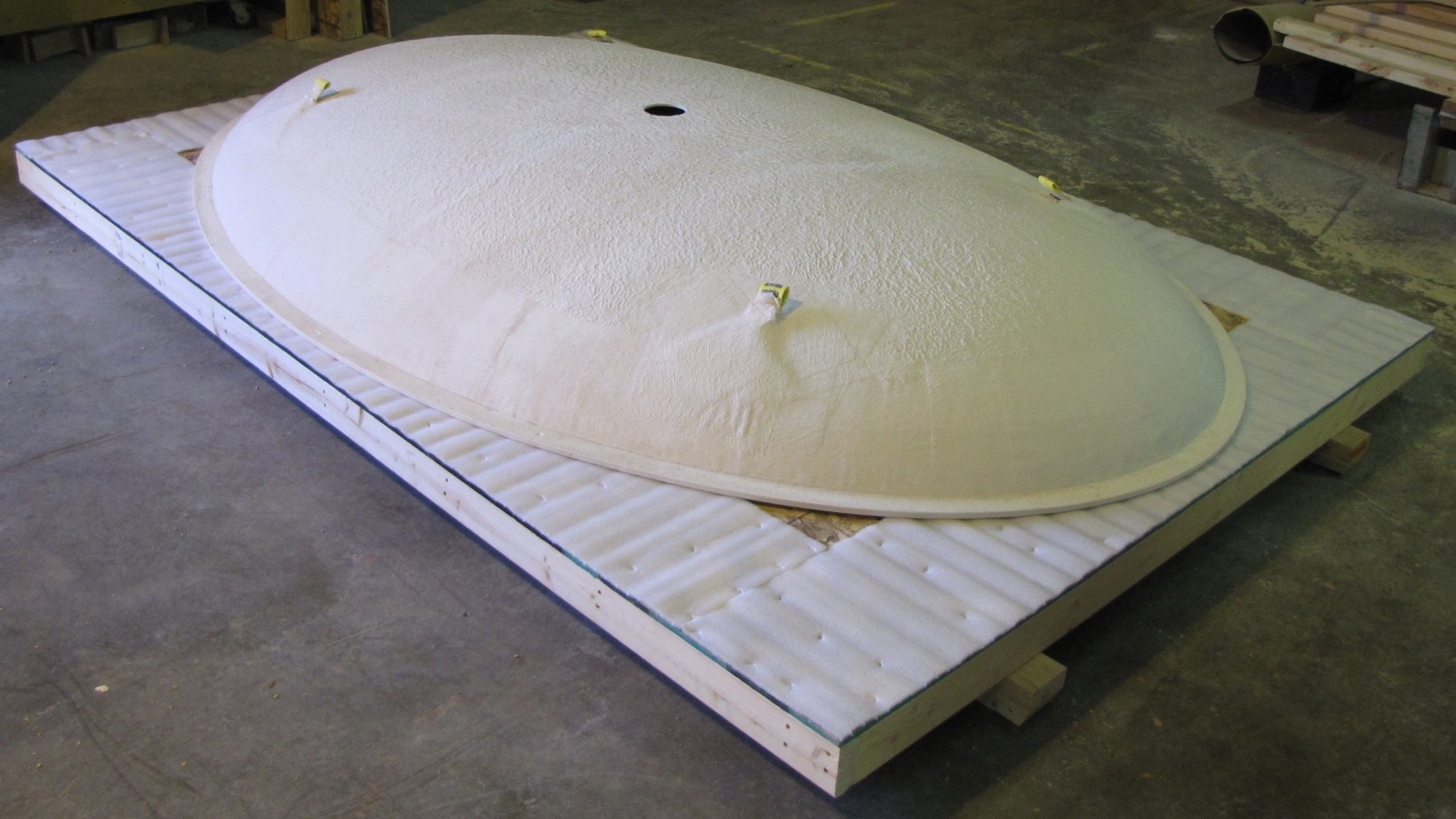

Dome on a crate deck. Optional standard or
custom light cove
available.

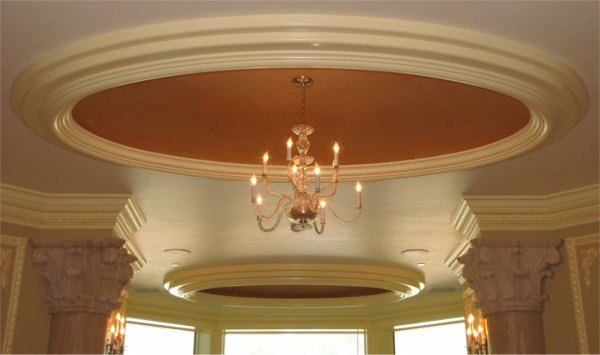

Dome with a custom Light Cove. Smaller (oval)
dome in
the background.
In addition to
a Standard Light Cove, here is our Acanthus & Pearl
Light Cove.
|
153" L x 90" W Oval
Dome
* Dimensions:
153-1/4" length x 90-1/8" width, with a 24-1/2"
overall rise (i.e. depth).
See diagrams.
Note: We
can ship a Tyvex
framing pattern to you (or your framer) upon request at placement
of order (no additional charge).
* Bolt-able flange for seams, recessed inner
seams for easy perfataping, and 2-1/4" bottom
mount flange. See
multi-piece dome installation suggestions.
* Additional
heavy duty strapping cast into Dome for more security.
* Optional
4-piece Light Coves (i.e. light shelves) add approximately 6" to length and
width, and are installed after drywall.
See light cove installation suggestions.
* Optional
Casings/Trims also available.
* Also available
in GFRG Limestone
Cast
(includes actual limestone with various
color options, porosity, durable matte
finish sealer, and simulated grout
joints in light cove).
See
sample pictures.
153"x90" Dome:
$3,519.97
Standard Add-On Options
Traditional Light Cove (4-pieces,
see diagram) |
$1,199.97 |
Scrolled Ornaments for
Traditional Light Cove (see
pictures) |
$84.97
each |
Contemporary Light Cove (4-pieces,
see diagram) |
$1,199.97 |
Casing/Trim (profile
by request) |
TBD |
For a
shipping
quote, email
info@rwm-inc.com or call
801-268-2400
|
153"x90" Oval Dome
and
Traditional
Light Cove.

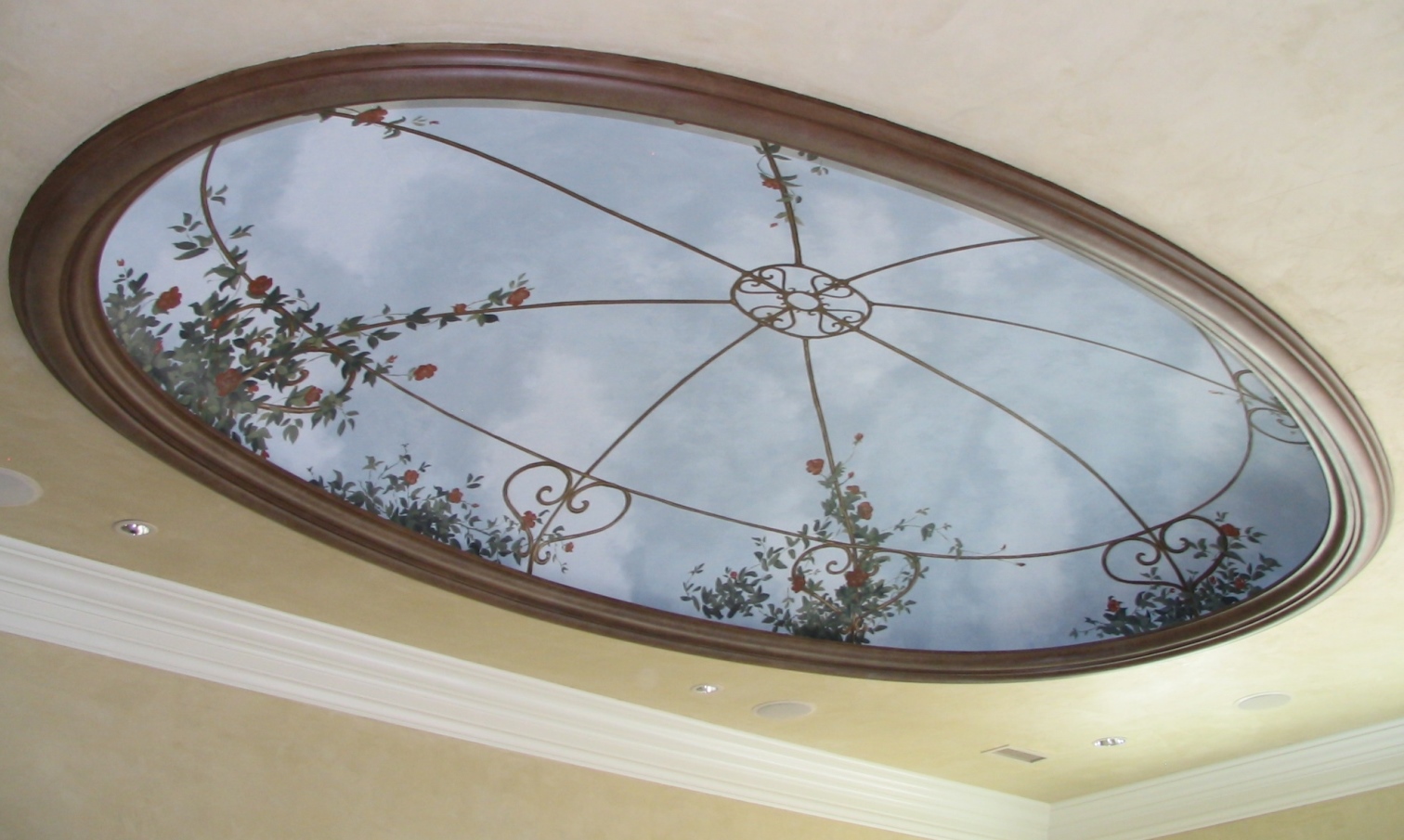

After
a local
artist gavie it a faux finish.

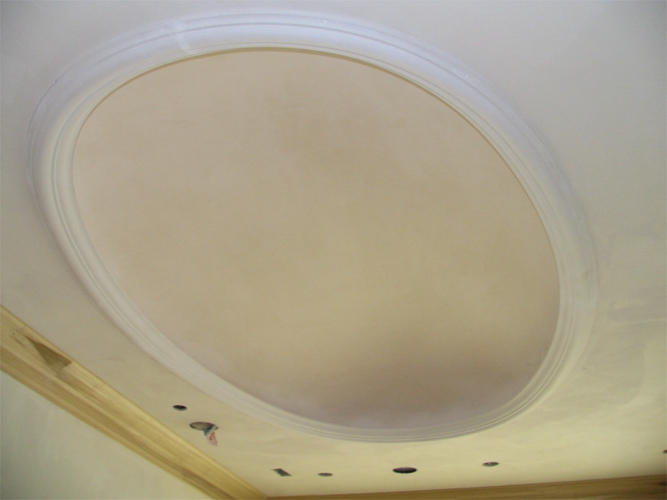

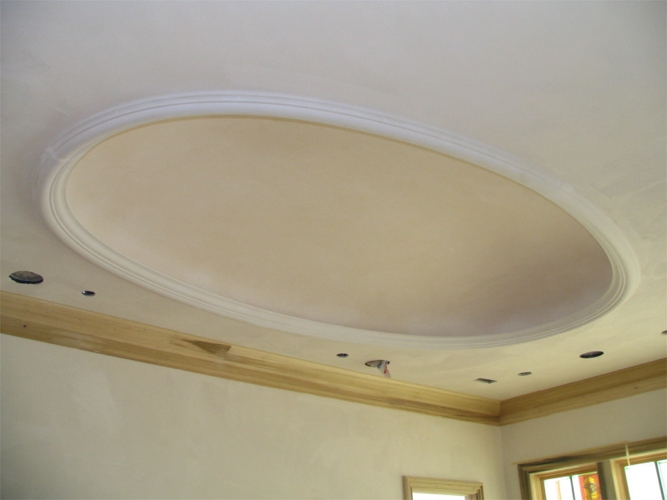

Another
prepainted view.
This
faux-finished Dome went into the library of the
Robert Hall Winery.

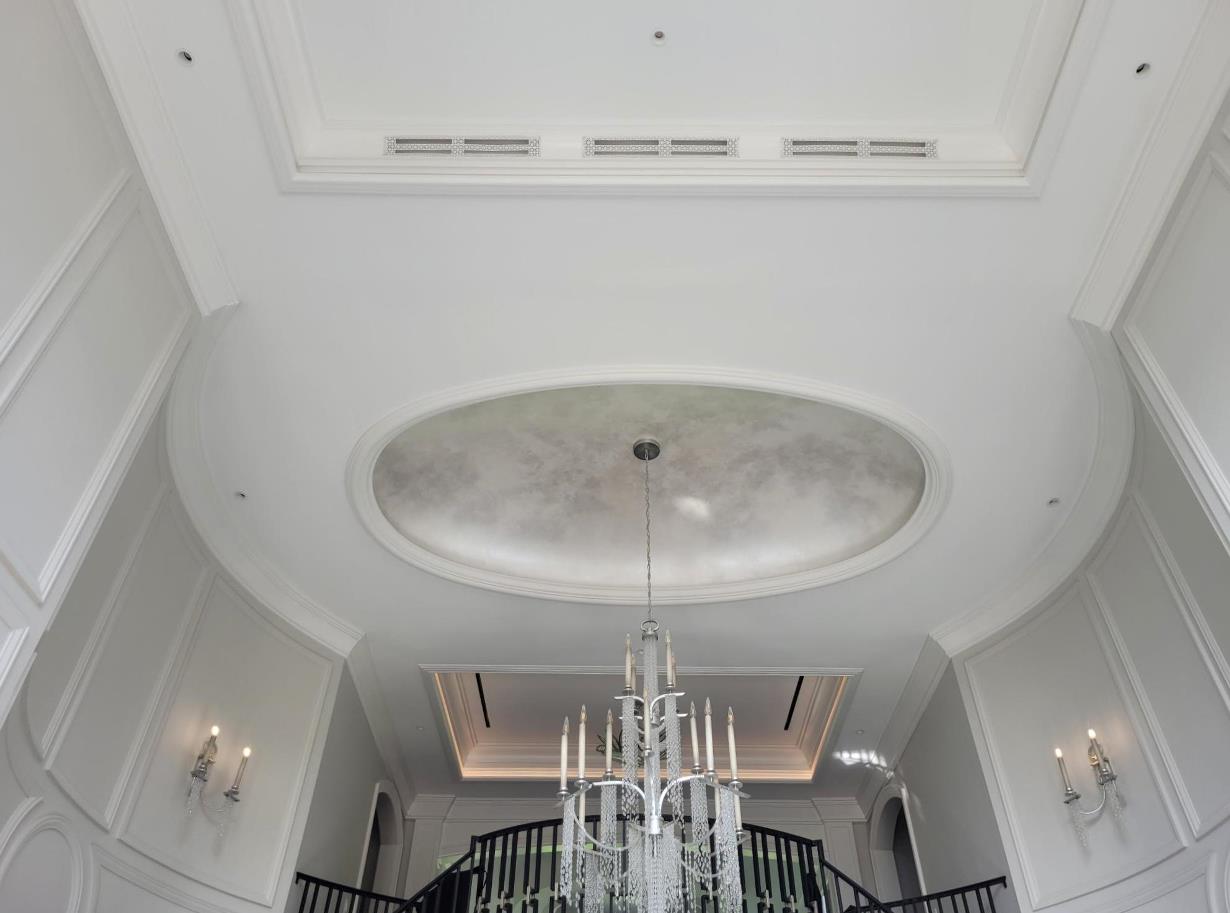

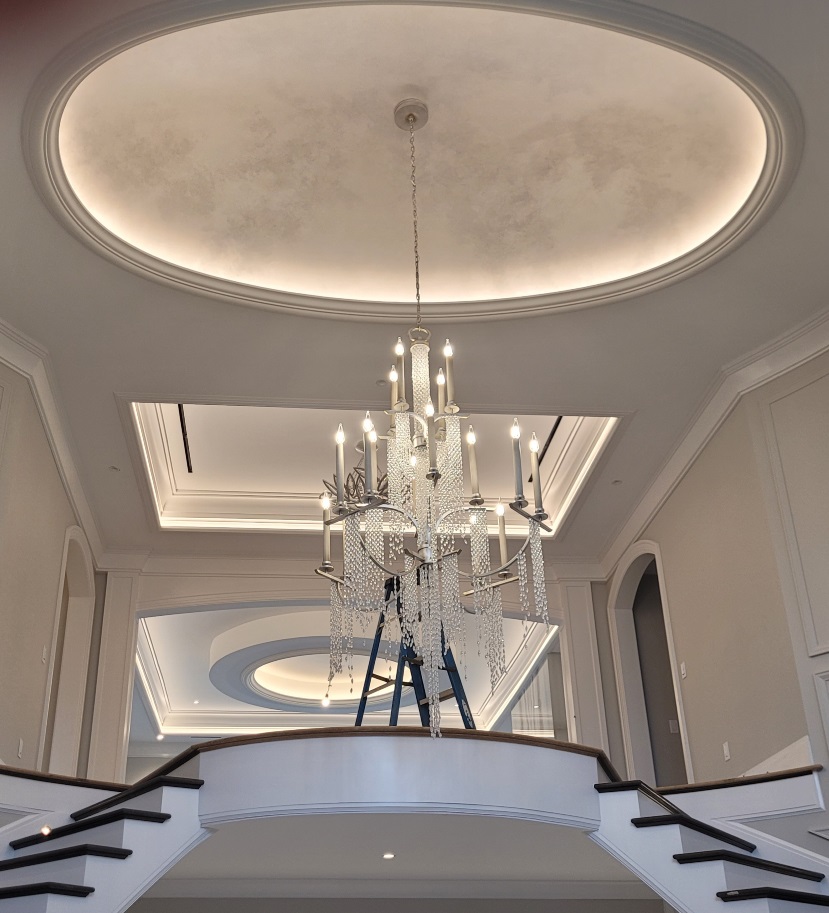

Finished 153"x90" Oval Dome
and
Traditional
Light Cove,
shared by
Architectural Products Inc.
One of our
7' round domes in the background.
Another view.
Here are two pieces of our Traditional Light Cove after we
mudlocked them together with the Patch Kit (and
instructions) we'll send out to you.
|
Racetrack
Domes
* Standard and custom
sizes
available: We can make a Racetrack Dome out of nearly
every standard round size we carry.
* Optional
Light Coves (i.e. light shelves) or Casings/Trims also
available.
* Bolt-able flange for seams, recessed inner
seams for easy perfataping, and 2-1/4" bottom
mount flange.
* Achieve a custom Racetrack Dome at a fraction of the cost of a custom elliptical
Oval Dome.
For
more information, email
info@rwm-inc.com or call
801-268-2400
What is a
Racetrack
Dome?
Click on
printable diagram.
Racetrack
Dome:
One Example
Click on
printable diagram.

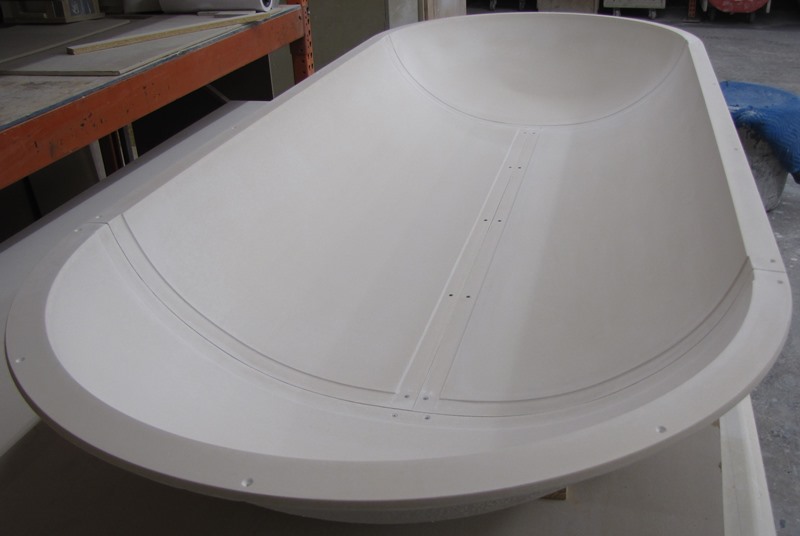

Racetrack Dome inner seams are
recessed for perfataping.
|

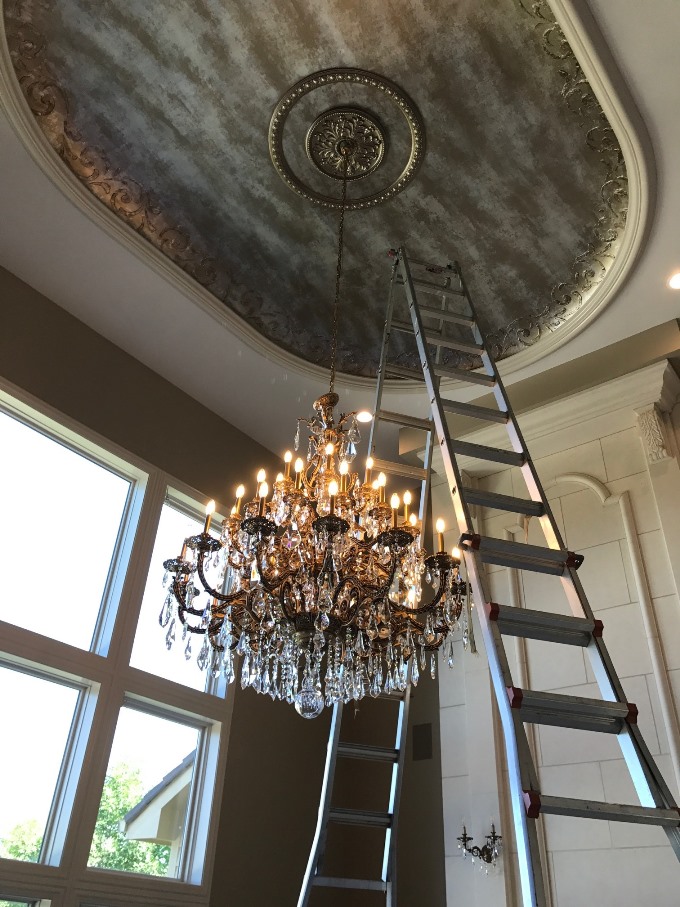

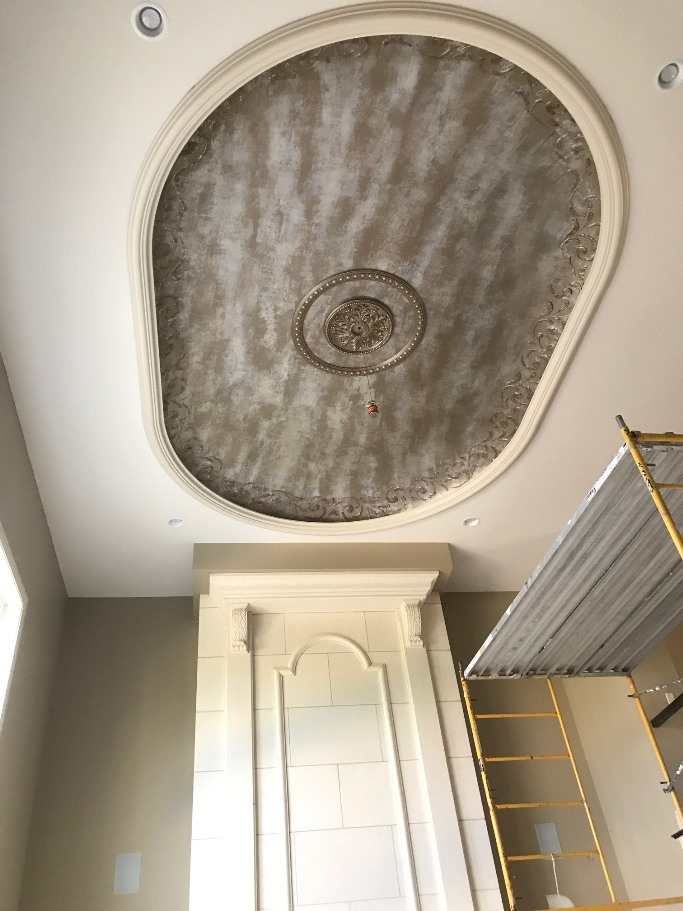

11' wide x 16' long x 14"
rise Racetrack Dome with
Traditional Light Cove.
Another view. Medallion,
Accent Ring, and Fireplace sold separately.

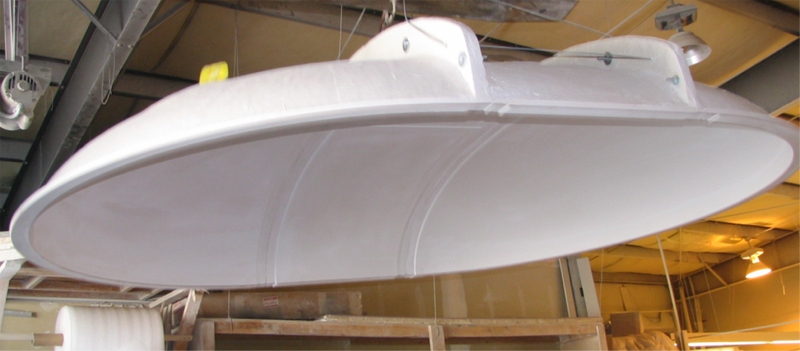

6' wide (by any length)
Racetrack Dome.

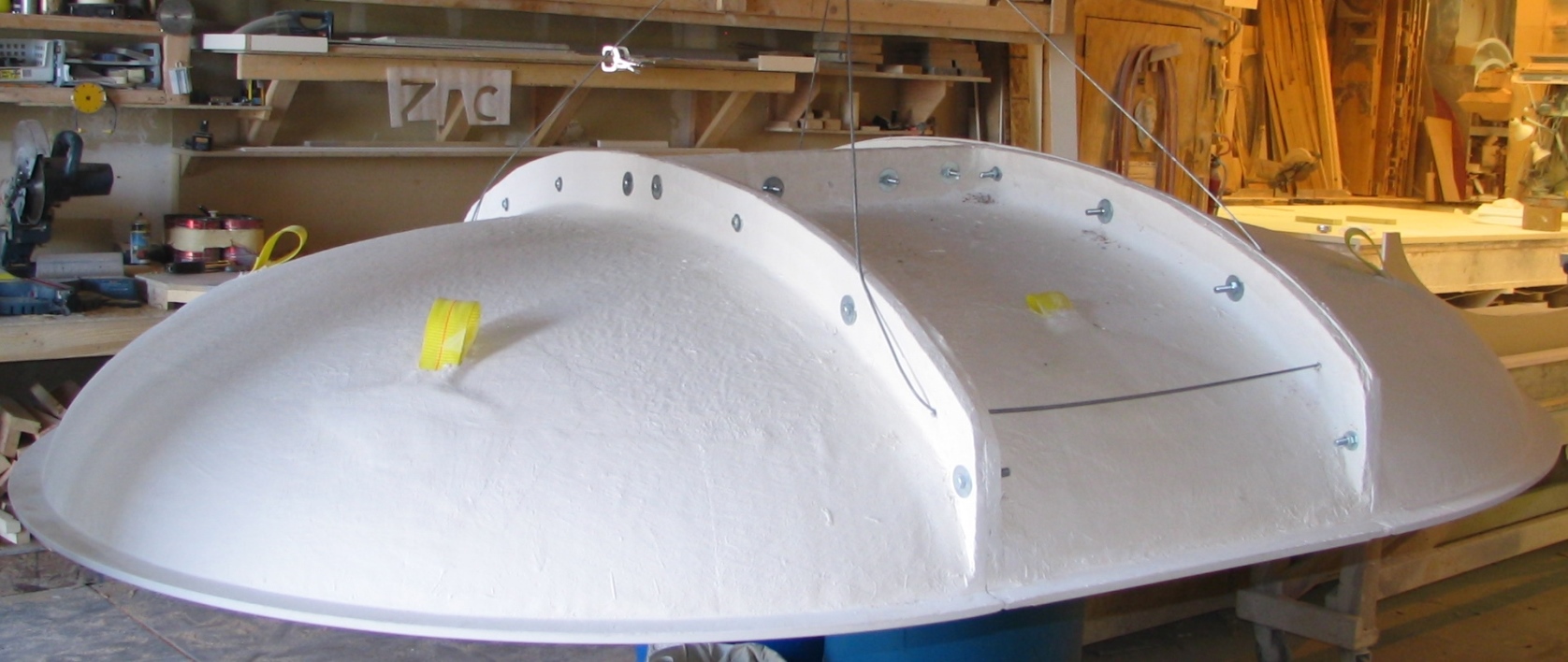

Another view
of the topside with bolt flange.
Another view of the underside. Notice the recessed inner
seams, ready to be perfataped smooth.

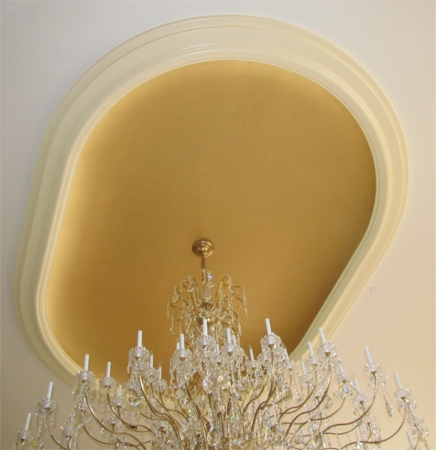

11' wide x 16' long x 14"
rise Racetrack Dome with custom Light Cove.

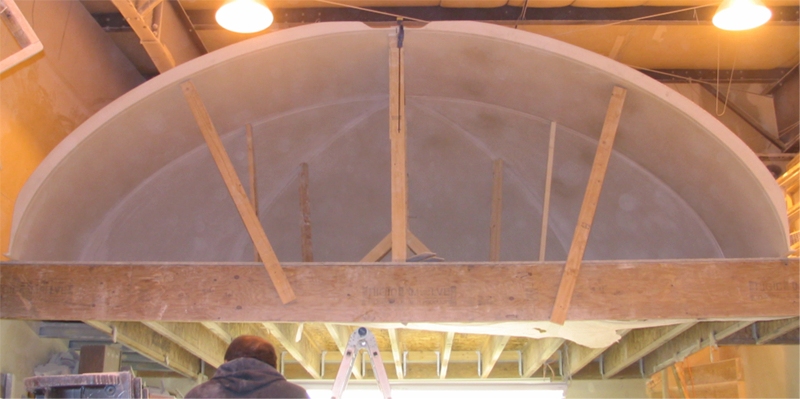

16' wide (by any length) Racetrack Dome (set up prior to crating). Only one of the
straight sections is shown here.

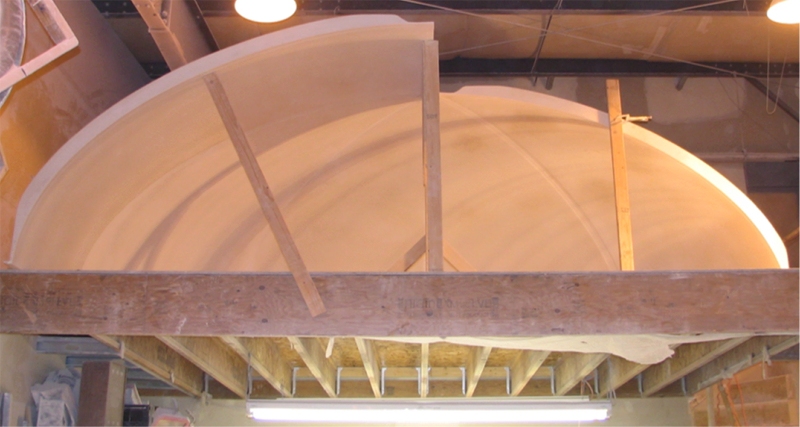

Another view
with a second straight section added. These
straight sections can be adjusted in length.

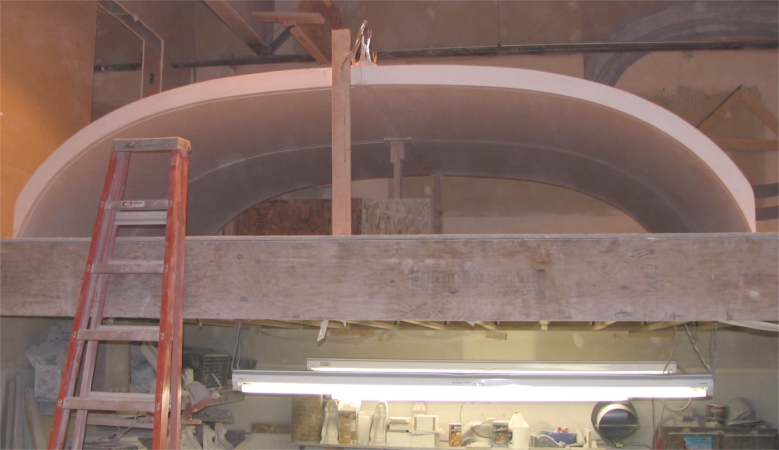

Four 12' wide straight sections being fitted.
Final length was 28'.
Racetrack
Dome with Acanthus & Pearl Light Cove.
We split our standard 3' Round Dome to create it.
We can add coffered panels to
Racetrack Domes. This
4' Dome was elongated to 8' in length.
See diagrams of this example.
Another
view.
8' dome Dome elongated to 12' in length.
Another
view. |
Custom Oval & Round Ceiling Domes
*
All sizes, depths, and styles.
*
Recessed, partially recessed, surface mount, or
inverted.
*
Matching light coves (i.e. light shelf — ideal for rope
lighting), or custom bottom casings/trims, accent rings,
and medallions available.
*
Made of
Glass Fiber Reinforced Gypsum (GFRG or GRG) that is
100% NONCOMBUSTIBLE, crack,
shrink, and insect resistant, and extremely durable.
* All our GFRG products
are made in the U.S.A. by skilled American craftsmen.
For a
quote, email
info@rwm-inc.com or call
801-268-2400
Elliptical Cove
Options
for Limited Height
If you have height restrictions, we can create elliptical Wall-to-Ceiling Cove that simulates a
Racetrack Dome or Elliptical Dome shape. Click on the
drawing above to enlarge example.
Often designed to go flush
with your drywall, simply drywall the center,
and perfatape the recessed edges. You could use an
optional light cove or casing around it.
Ask for details
or
click here
to learn more.
Example of our elliptical cove in a 13' diameter.
We only had approximately 13" of rise/depth to work
with, and added a decorative light cove. Can
you tell it isn't an actual ceiling dome? |
28' diameter Dome we created and installed for the El Dorado Hotel in
Reno, Nevada.
Custom 14' diameter dome with a 7' rise.
Home movie
theater custom dome and mouldings.
Arabesque-type
dome.
Dome for the Mellow Mushroom
Restaurant in Centennial, CO. They added plexiglass fins.
Another
view.
Special
third party resin appliqué on a 3' Dome and
Traditional
Light Cove.
We make and crate them big.
|
Email
info@rwm-inc.com
or call
801-268-2400
©
Copyright 2024
|
|
|
|
